HDSP-7511 - Avago Technologies

Description: HDSP-7511 Broadcom 7-Segment LED Display, CA Red 1 mcd RH DP 7.6mm

Download HDSP-7511 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

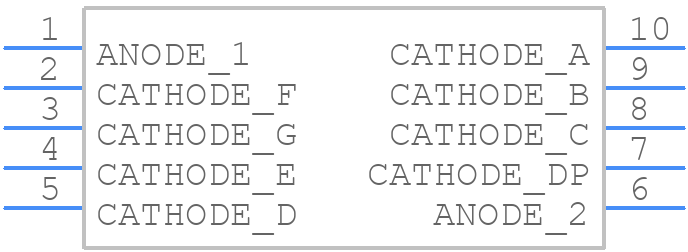

Symbol
HDSP-7511 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HDSP-7511 - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-7511
click to zoom
3D Models
HDSP-7511 - Avago Technologies - 3D model - Dual-In-Line Sockets - HDSP-7511
click to zoom

HDSP-7511 Details

  • Manufacturer Part Number:

    HDSP-7511

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7.6 mm

  • Forward Current-Max:

    0.015 A

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDSP-7511 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the HDSP-7511 involves placing the device near the edge of the board, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and signal degradation.
  • To optimize the HDSP-7511 for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current to the minimum required for the application.
  • The maximum operating temperature for the HDSP-7511 is 85°C, but it's recommended to operate the device at a temperature below 70°C to ensure optimal performance and reliability.
  • Yes, the HDSP-7511 can be used in a non-50Ω system, but it may require additional impedance matching components to ensure optimal performance.
  • To troubleshoot issues with the HDSP-7511, start by checking the power supply voltage, clock frequency, and signal integrity. Use oscilloscopes and logic analyzers to debug the issue, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-7511 Overview

Use the download button to access the HDSP-7511 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays
