HDSP-B03E - Avago Technologies

Description: LED Displays & Accessories 88:88 Clock Module 0.56in 4 Digits CC

Download HDSP-B03E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

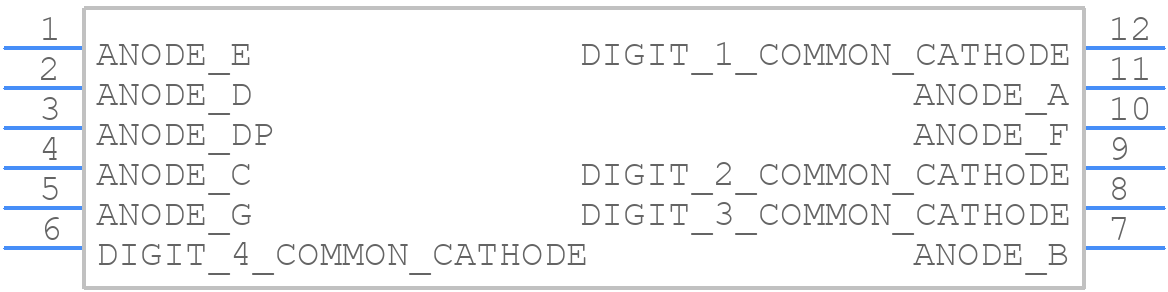

HDSP-B03E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

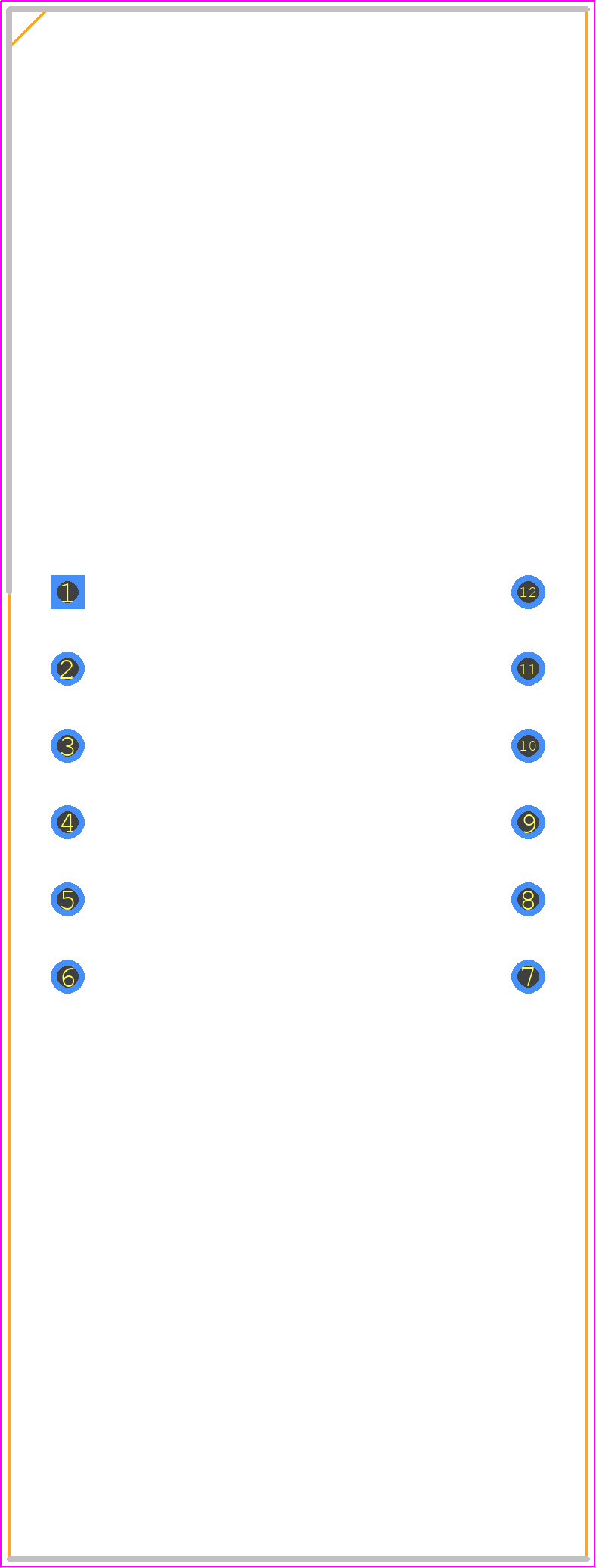

HDSP-B03E - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-B01E
click to zoom
3D Models
HDSP-B03E - Avago Technologies - 3D model - Dual-In-Line Sockets - HDSP-B01E
click to zoom

HDSP-B03E Details

  • Manufacturer Part Number:

    HDSP-B03E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    Common Cathode

  • Display Height:

    14.22 mm

  • Forward Voltage-Max:

    2.6 V

  • Infrared Range:

    NO

  • JESD-609 Code:

    e3

  • Number of Characters:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    CLOCK LED DISPLAY

  • Peak Wavelength:

    632 nm

  • Terminal Finish:

    Tin (Sn)

HDSP-B03E Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HDSP-B03E can be found in the Broadcom application note AN9331, which provides guidelines for PCB design, thermal management, and component placement.
  • The HDSP-B03E can be configured for different display resolutions and interfaces using the Broadcom-provided software development kit (SDK) and API. The SDK provides examples and documentation for configuring the device for various display modes and interfaces, such as HDMI, DisplayPort, and MIPI DSI.
  • The HDSP-B03E has a maximum bandwidth of 18 Gbps and a data transfer rate of up to 6 Gbps per lane, making it suitable for high-speed display applications.
  • The HDSP-B03E supports HDCP 2.2 and other content protection schemes. Implementation requires licensing and integration of the necessary cryptographic keys and software, which can be obtained from Broadcom or authorized partners.
  • The HDSP-B03E has a typical power consumption of 1.2W and a maximum junction temperature of 125°C. The device also has built-in thermal monitoring and protection features to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-B03E Overview

Use the download button to access the HDSP-B03E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays
