Part Image

HDSP-F111 - Avago Technologies

Description: LED Displays & Accessories Red 637nm 0.4in 7 Segment

Download HDSP-F111 Model

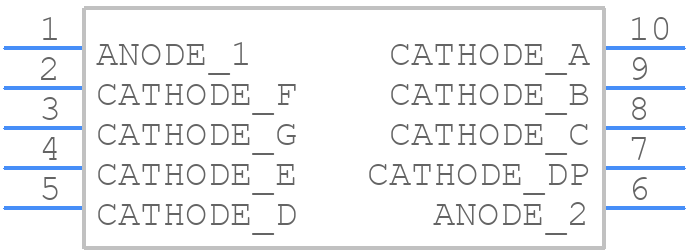

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HDSP-F111 - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)_2023
click to zoom
3D Models
HDSP-F111 - Avago Technologies  - 3D model - Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)_2023
click to zoom

HDSP-F111 Details

  • Manufacturer Part Number:

    HDSP-F111

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDSP-F111 Frequently Asked Questions (FAQs)

  • Broadcom provides a reference design guide for PCB layout and thermal management. It's recommended to follow the guidelines for optimal performance and thermal dissipation.
  • To optimize for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the voltage regulator module (VRM) settings. Additionally, consider using power-saving modes like sleep or standby.
  • The recommended settings for the internal voltage regulators can be found in the HDSP-F111 datasheet, section 5.1. It's essential to follow these settings to ensure proper operation and prevent damage to the device.
  • To troubleshoot I2C interface issues, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and the slave devices are properly addressed and configured.
  • Thermal design considerations include providing adequate heat dissipation, using thermal vias, and ensuring good thermal conductivity between the device and the PCB. A thermal analysis should be performed to ensure the device operates within the recommended temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-F111 Overview

Use the download button to access the HDSP-F111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays

Parts related to HDSP-F111

Showing 0 results

HDSP-F111 Alternates

Showing results

Image Part Number Model
Part Image HDSP-F111 Hewlett Packard Co

7 Seg Numeric LED Display, 1-Character, Red, 10mm

Part Image HDSP-F111 Agilent Technologies Inc

7 Seg Numeric LED Display, 1-Character, Red, 10.16mm
