HDSP-K511 - Avago Technologies

Description: LED Displays & Accessories Green 571nm .56in Dual Digit 7 Segment

Download HDSP-K511 Model

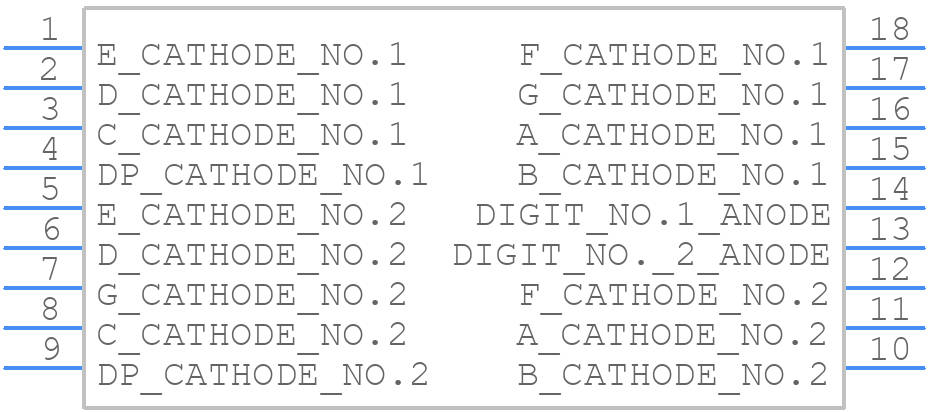

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

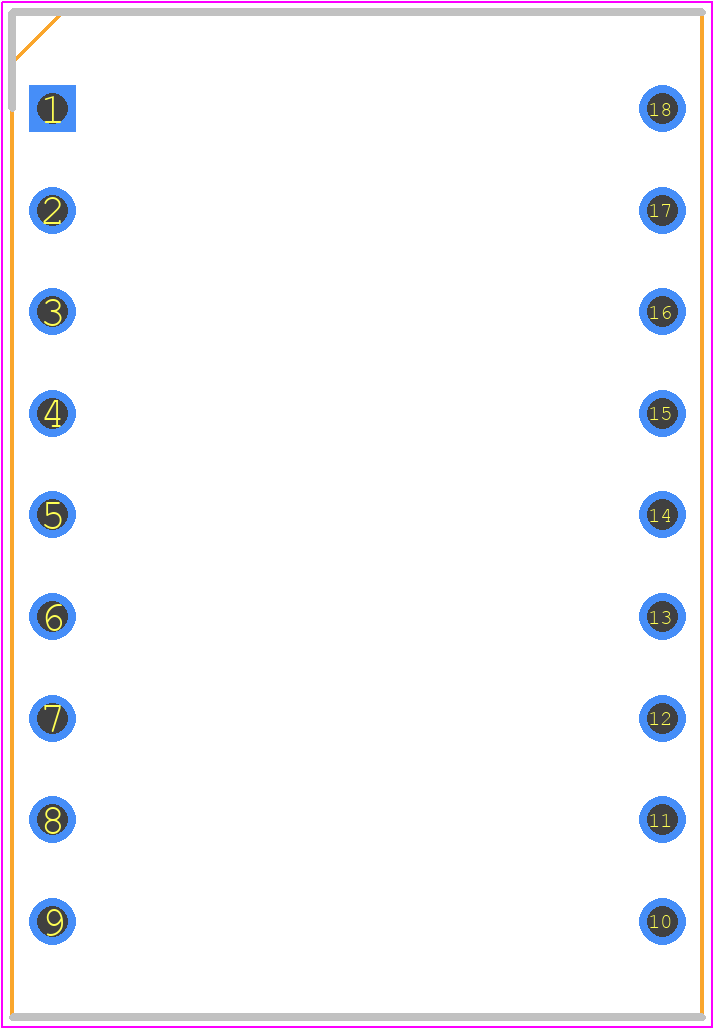

HDSP-K511 - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-K121
click to zoom
3D Models
HDSP-K511 - Avago Technologies  - 3D model - Dual-In-Line Sockets - HDSP-K121
click to zoom

HDSP-K511 Details

  • Manufacturer Part Number:

    HDSP-K511

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    566 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDSP-K511 Frequently Asked Questions (FAQs)

  • Broadcom provides a reference design guide for HDSP-K511 that includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance and reliability.
  • To optimize the HDSP-K511 for low power consumption, engineers can use the device's power-saving features, such as dynamic voltage and frequency scaling, and adjust the clock frequency and voltage settings according to their application's requirements.
  • Engineers should follow proper EMI and EMC design practices, such as using shielding, filtering, and grounding, to minimize electromagnetic radiation and ensure compliance with regulatory standards.
  • To ensure reliable data transmission and reception, engineers should implement error detection and correction mechanisms, such as CRC and FEC, and use proper signal integrity and transmission line design practices.
  • The HDSP-K511 has a maximum junction temperature of 125°C. Engineers should ensure that the device operates within the recommended temperature range and derate the device's performance according to the ambient temperature to prevent overheating and ensure reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-K511 Overview

Use the download button to access the HDSP-K511 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays

Parts related to HDSP-K511

Showing 0 results

HDSP-K511 Alternates

Showing results

Image Part Number Model
Part Image HDSP-K511 Agilent Technologies Inc

7 Seg Numeric LED Display, 2-Character, Green, 14.22mm
