HDSP-N103 - Avago Technologies

Description: LED Display, Numeric Seven Segment, 1 Character, Red, DIP Package

Download HDSP-N103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

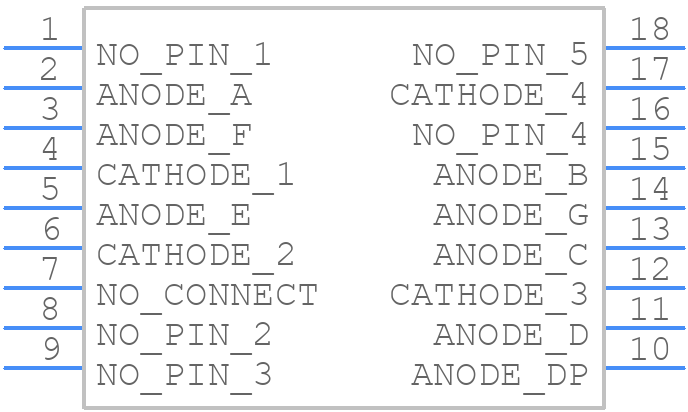

HDSP-N103 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

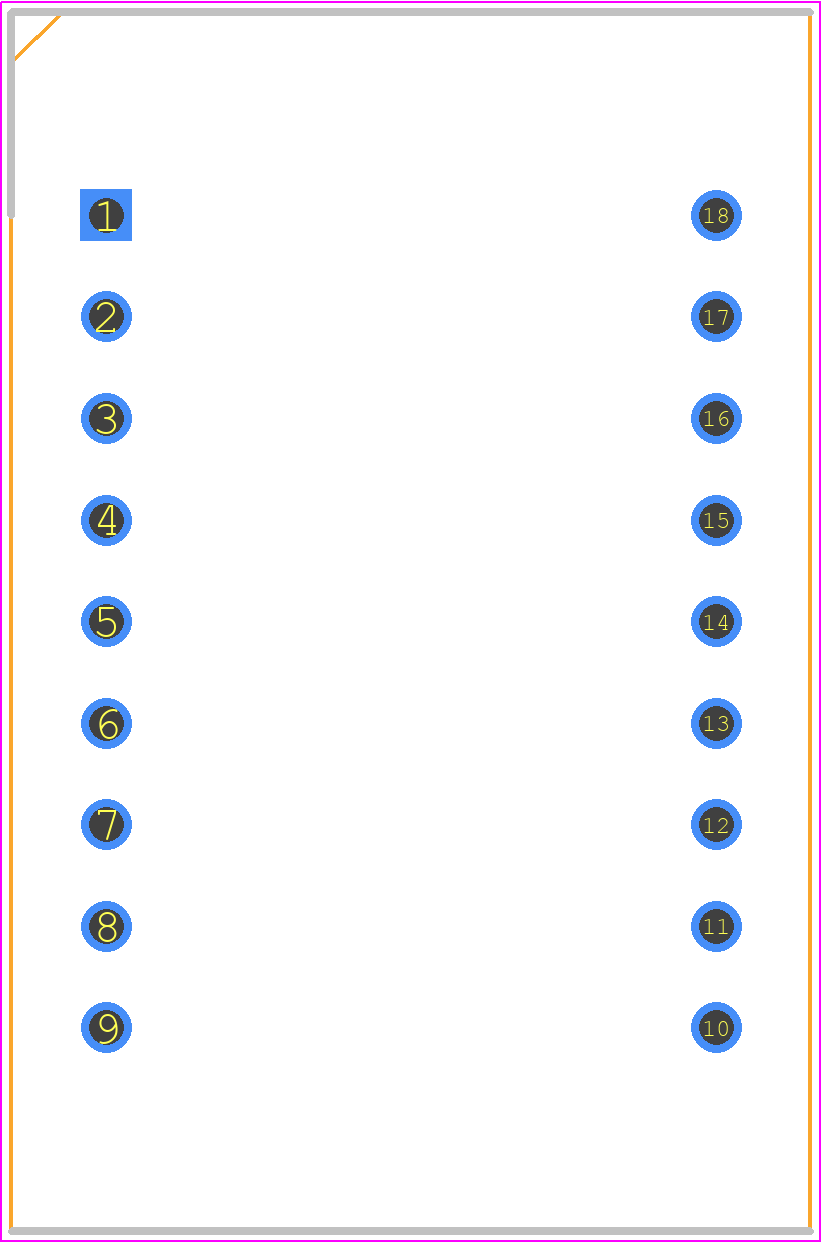

HDSP-N103 - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-18_2024
click to zoom

HDSP-N103 Details

  • Manufacturer Part Number:

    HDSP-N103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20 mm

  • Forward Current-Max:

    0.015 A

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
