HDSP-U103 - Avago Technologies

Description: HDSP-U103 Broadcom 7-Segment LED Display, CC Red 3.6 mcd RH DP 8mm

Download HDSP-U103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

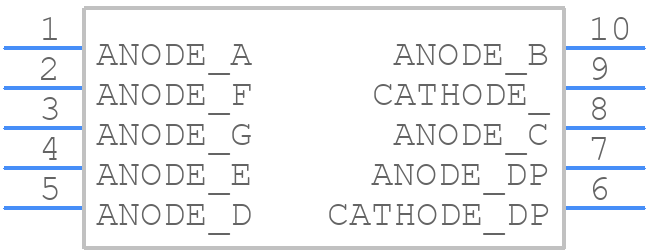

HDSP-U103 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HDSP-U103 - Avago Technologies PCB footprint - Other - Other - HDSP-U103-6
click to zoom
3D Models
HDSP-U103 - Avago Technologies - 3D model - Other - HDSP-U103-6
click to zoom

HDSP-U103 Details

  • Manufacturer Part Number:

    HDSP-U103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.2 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDSP-U103 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HDSP-U103 is -40°C to 85°C.
  • To configure the HDSP-U103 for optimal power consumption, use the Power Management (PM) registers to set the desired power mode, and adjust the clock frequency and voltage supply accordingly.
  • The HDSP-U103 supports data transfer rates up to 10.3125 Gbps.
  • To troubleshoot issues with the HDSP-U103's serial interface, check the serial clock frequency, data format, and transmission mode, and ensure that the interface is properly configured and terminated.
  • Yes, the HDSP-U103 can be used in a multi-lane configuration to increase the overall data transfer rate and bandwidth.
