HDSP-U111 - Avago Technologies

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.7V 5mA 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) 10-DIP (0.209", 5.30mm)

Download HDSP-U111 Model

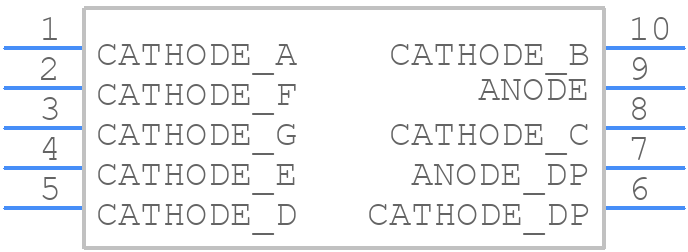

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HDSP-U111 - Avago Technologies PCB footprint - Other - Other - 10-DIP_2025
click to zoom
3D Models
HDSP-U111 - Avago Technologies  - 3D model - Other - 10-DIP_2025
click to zoom

HDSP-U111 Details

  • Manufacturer Part Number:

    HDSP-U111

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.2 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    645 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDSP-U111 Frequently Asked Questions (FAQs)

  • Broadcom provides a reference design guide for HDSP-U111 that includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance and reliability.
  • To optimize HDSP-U111 for low power consumption, use the device's power-saving features, such as dynamic voltage and frequency scaling, and adjust the clock frequency and voltage according to the system's requirements. Additionally, use the device's low-power modes, such as sleep and standby modes, when possible.
  • To mitigate EMI and RFI when using HDSP-U111, use proper PCB layout techniques, such as separating analog and digital circuits, using ground planes, and adding EMI filters. Additionally, ensure that the device is properly shielded, and use EMI-absorbing materials if necessary.
  • To ensure reliable data transmission and reception with HDSP-U111, use error correction mechanisms, such as CRC and checksum, and implement data retransmission protocols. Additionally, ensure that the device is properly configured, and the transmission lines are properly terminated.
  • HDSP-U111 has a maximum junction temperature of 125°C. To prevent overheating, ensure proper airflow, use a heat sink if necessary, and avoid blocking the device's thermal pads. Additionally, monitor the device's temperature and adjust the system's thermal management accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-U111 Overview

Use the download button to access the HDSP-U111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays

Parts related to HDSP-U111

Showing 0 results

HDSP-U111 Alternates

Showing results

Image Part Number Model
Part Image HDSP-U111 Broadcom Limited

7 Seg Numeric LED Display, 1-Character, Red, 8mm
