HDSP-U313 - Avago Technologies

Description: Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Cathode 2.2V 20mA 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) 10-DIP (0.209", 5.30mm)

Download HDSP-U313 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

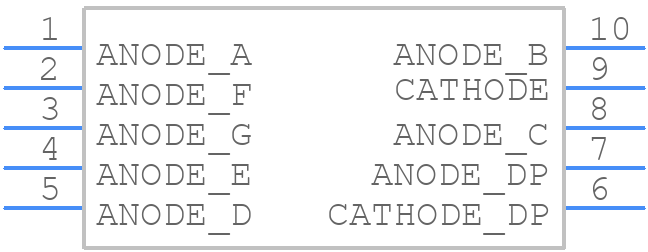

HDSP-U313 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HDSP-U313 - Avago Technologies PCB footprint - Other - Other - 10-DIP_2025-5
click to zoom
3D Models
HDSP-U313 - Avago Technologies - 3D model - Other - 10-DIP_2025-5
click to zoom

HDSP-U313 Details

  • Manufacturer Part Number:

    HDSP-U313

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.5 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    583 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
