HE1aN-P-DC100V - Panasonic

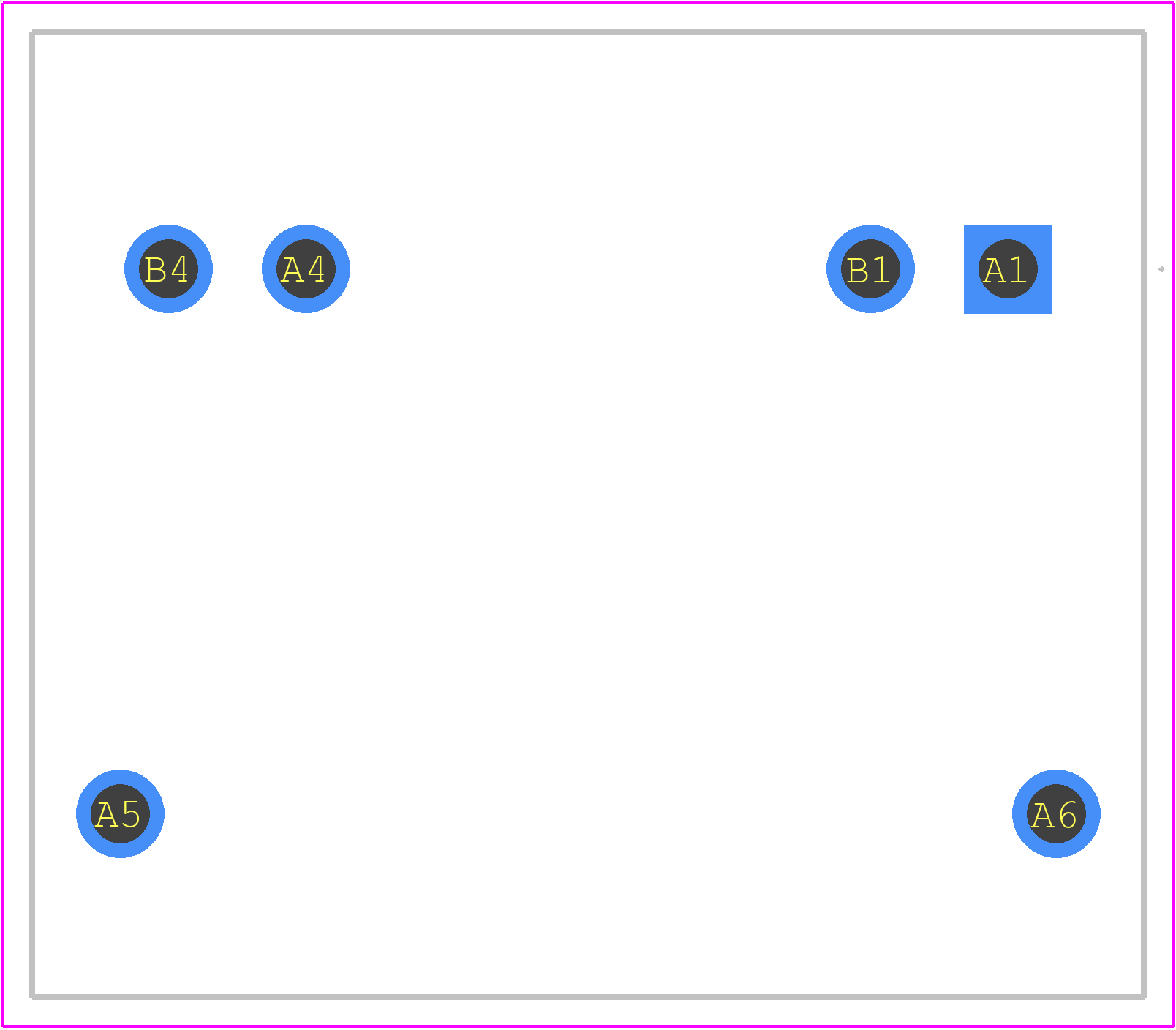

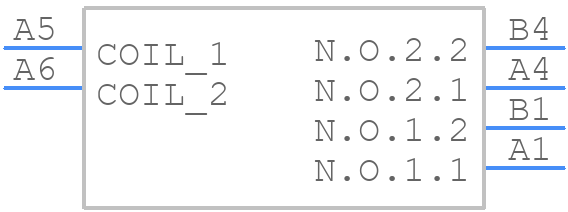

HE1aN-P-DC100V Details

• Manufacturer Part Number:

  HE1AN-P-DC100V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.8

• Body Breadth:

  33 mm

• Body Height:

  36.3 mm

• Body Length or Diameter:

  38 mm

• Coil Current(DC)-Max:

  0.019 A

• Coil Operate Voltage(DC):

  70 V

• Coil Power:

  1920 mW

• Coil Release Voltage(DC):

  10 V

• Coil Resistance:

  5200 Ω

• Coil Voltage(DC)-Max:

  100 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  30A@277VAC

• Contact Current(AC)-Max:

  30 A

• Contact Current(DC)-Max:

  30 A

• Contact (DC) Max Rating R Load:

  30A@30VDC

• Contact Voltage(AC)-Max:

  277 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  30 ms

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -50 °C

• Packing Method:

  BOX

• Physical Dimension:

  38mm x 33mm x 36.3mm

• Reference Standard:

  CSA; TUV; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Termination Type:

  SOLDER
