HE1aN-P-DC12V-H18 - Panasonic

HE1aN-P-DC12V-H18 Details

• Manufacturer Part Number:

  HE1AN-P-DC12V-H18

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Factory Lead Time:

  24 Weeks, 6 Days

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.87

• Body Breadth:

  33 mm

• Body Height:

  36.3 mm

• Body Length or Diameter:

  38 mm

• Coil Current(DC)-Max:

  0.16 A

• Coil Operate Voltage(DC):

  8.4 V

• Coil Power:

  1920 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  75 Ω

• Coil Voltage(DC)-Max:

  13.2 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  9695VA@277VAC

• Contact (AC) Max Rating R Load:

  35A@277VAC

• Contact Current(AC)-Max:

  35 A

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  277 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

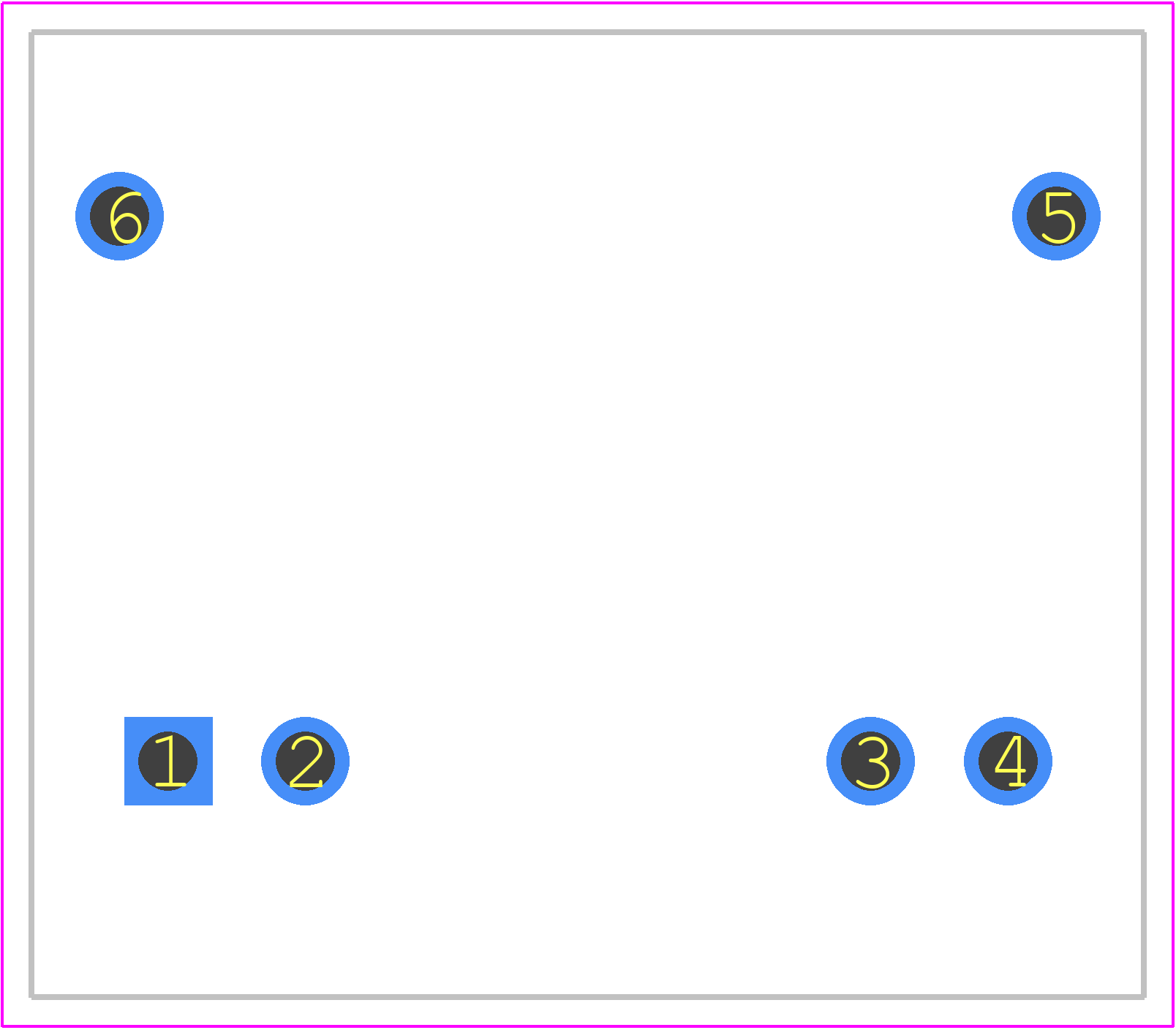

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  6

• Operate Time:

  30 ms

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -50 °C

• Packing Method:

  BOX

• Physical Dimension:

  38mm x 33mm x 36.3mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
