HE1aN-P-DC48V footprint, schematic symbol and 3D model by Panasonic

Symbol

click to zoom

PCB Footprints

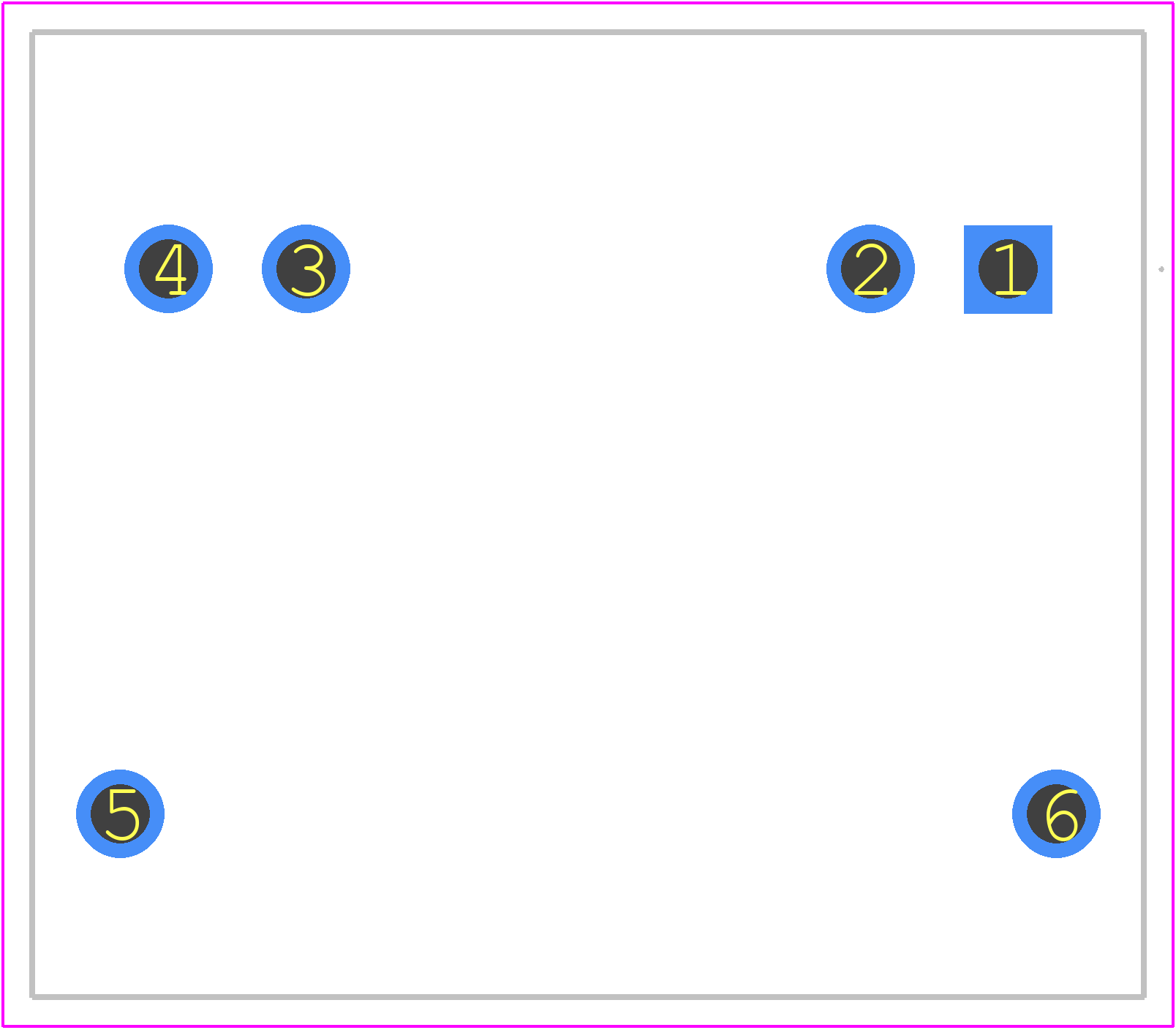

HE1aN-P-DC48V - Panasonic PCB footprint - Other - Other - HE1aN-P-DC48V-2

click to zoom

3D Models

HE1aN-P-DC48V - Panasonic - 3D model - Other - HE1aN-P-DC48V-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HE1aN-P-DC48V
Part Number HE1aN-P-DC48V
Manufacturer Panasonic
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HE1aN-P-DC48V-2
Released Date Mar 31, 2026
Last Modified Date Mar 31, 2026 2:49 PM UTC
Pinout / Pin List Click Here (Member Only)

HE1aN-P-DC48V Details

Manufacturer Part Number:
HE1AN-P-DC48V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.41.00.50
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
33 mm
Body Height:
36.3 mm
Body Length or Diameter:
38 mm
Coil Current(DC)-Max:
0.04 A
Coil Operate Voltage(DC):
33.6 V
Coil Power:
1920 mW
Coil Release Voltage(DC):
4.8 V
Coil Resistance:
1200 Ω
Coil Voltage(DC)-Max:
48 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
30A@277VAC
Contact Current(AC)-Max:
30 A
Contact Current(DC)-Max:
30 A
Contact (DC) Max Rating R Load:
30A@30VDC
Contact Voltage(AC)-Max:
277 V
Contact Voltage(DC)-Max:
30 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
30 ms
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-50 °C
Packing Method:
BOX
Physical Dimension:
38mm x 33mm x 36.3mm
Reference Standard:
CSA; TUV; UL; VDE
Relay Action:
MOMENTARY
Relay Function:
SPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER

HE1aN-P-DC48V Frequently Asked Questions (FAQs)

The maximum switching frequency of the HE1AN-P-DC48V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The HE1AN-P-DC48V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
Panasonic recommends a minimum PCB spacing of 1.5 mm between the relay and other components to ensure proper heat dissipation and to prevent electrical noise. A recommended PCB layout is available in the relay's application notes or by consulting with Panasonic's application engineers.
The HE1AN-P-DC48V relay is designed to withstand vibrations up to 10 G (10-2000 Hz). However, the relay's performance and lifespan may be affected in high-vibration environments. It's recommended to consult with Panasonic's application engineers to determine the suitable relay for your specific application.
Panasonic recommends a soldering temperature of 250°C (±5°C) and a soldering time of 3-5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the relay.

Trust Checks

Community Provided

System Verified

Community Approved

HE1aN-P-DC48V Overview

Use the download button to access the HE1aN-P-DC48V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HE1aN, or try a keyword search, such as Power/Signal Relays
