HE1aN-P-DC6V-Y5 - Panasonic

HE1aN-P-DC6V-Y5 Frequently Asked Questions (FAQs)

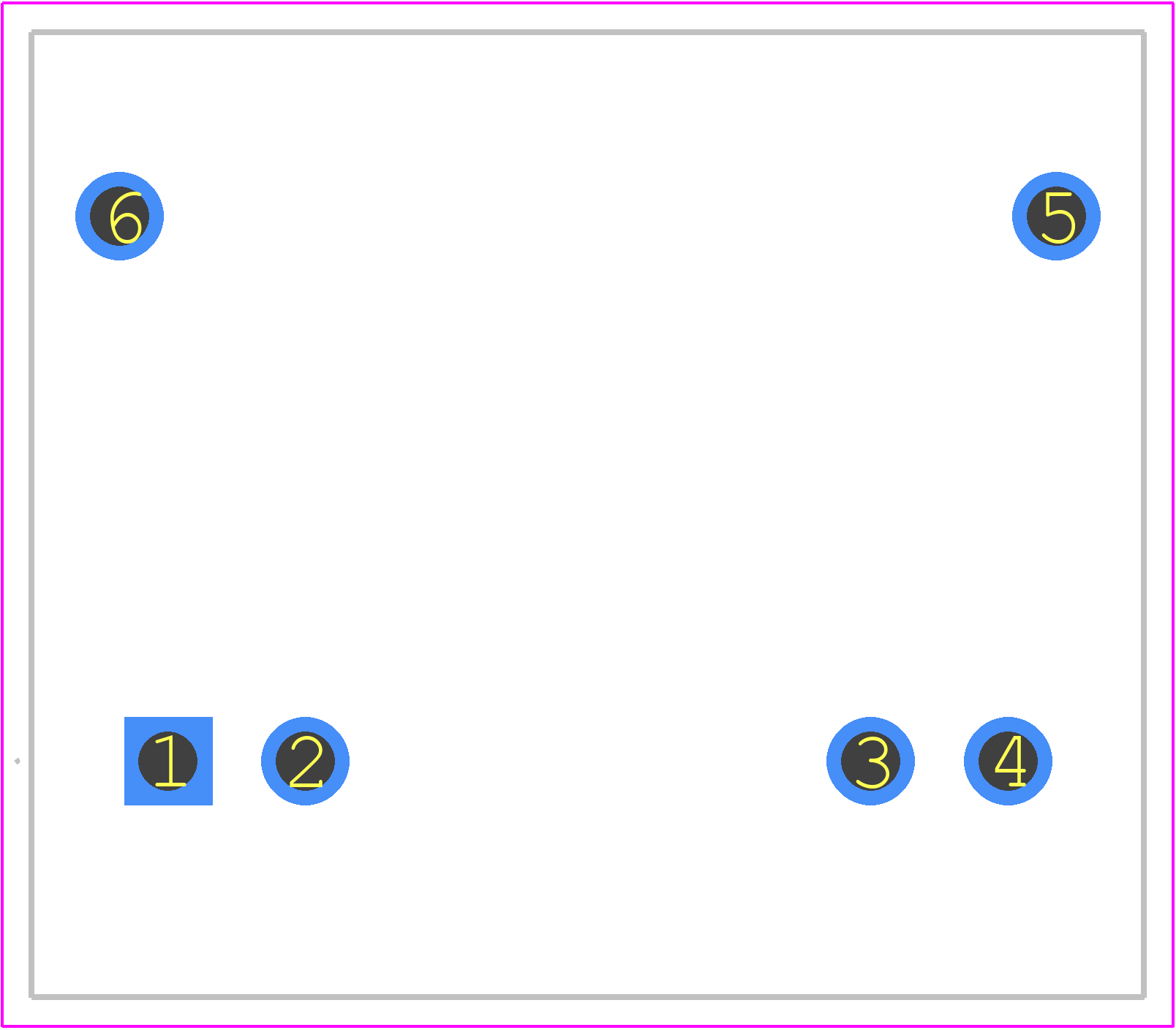

• What is the recommended PCB layout and land pattern for this relay?
  Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
• How do I handle the relay's coil voltage and current in my design?
  The relay's coil voltage and current ratings should be carefully considered in the design. A voltage regulator or resistor may be needed to ensure the coil voltage is within the recommended range. Additionally, the coil current should be limited to prevent overheating and ensure reliable operation.
• What is the relay's operating temperature range, and how does it affect its performance?
  The HE1AN-P-DC6V-Y5 relay has an operating temperature range of -40°C to 85°C. Operating the relay outside this range may affect its performance, reliability, and lifespan. Engineers should consider the relay's temperature rating when designing their system.
• How do I ensure the relay's contacts are properly driven and switched?
  Proper contact driving and switching require careful consideration of the relay's contact rating, switching frequency, and load characteristics. Engineers should ensure the relay is driven with a suitable driver circuit and that the contacts are properly switched to prevent arcing, welding, or other issues.
• What are the relay's safety and regulatory considerations, such as UL or CE certifications?
  The HE1AN-P-DC6V-Y5 relay meets various safety and regulatory standards, including UL and CE certifications. Engineers should verify the relay's compliance with relevant standards and regulations for their specific application and region.
