HE1aN-P-DC6V - Panasonic

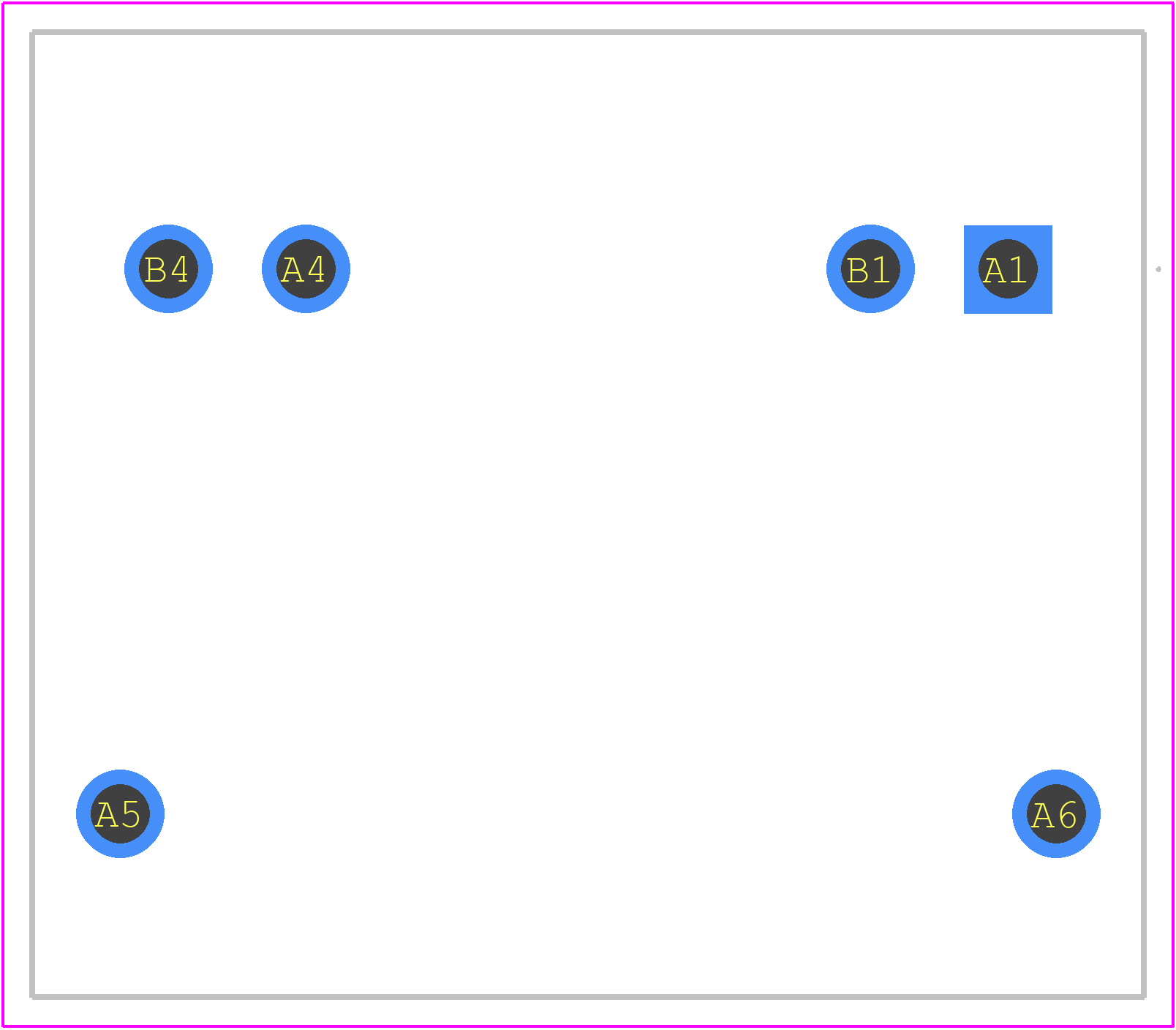

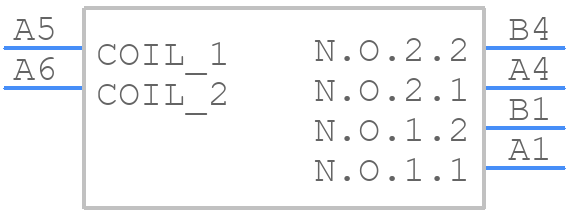

HE1aN-P-DC6V Details

• Manufacturer Part Number:

  HE1AN-P-DC6V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  34 mm

• Body Height:

  52.8 mm

• Body Length or Diameter:

  51 mm

• Coil Current(DC)-Max:

  0.08 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  1920 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  300 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  6925VA@277VAC

• Contact (AC) Max Rating R Load:

  25A@277VAC

• Contact Current(AC)-Max:

  25 A

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  277 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  10000000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Operate Time:

  30 ms

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -50 °C

• Packing Method:

  BOX

• Physical Dimension:

  51mm x 34mm x 52.8mm

• Reference Standard:

  CSA; CQC; TUV; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM A

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Termination Type:

  SCREW
