Panasonic provides a recommended PCB layout and land pattern in their application notes or relay mounting instructions. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
The relay's coil voltage and current ratings should be carefully considered in the design. A voltage regulator or resistor may be needed to ensure the coil voltage is within the recommended range. Additionally, the coil current should be limited to prevent overheating and to ensure reliable operation.
The HE1AN-P-DC9V-Y5 relay has an operating temperature range of -40°C to 85°C. Operating the relay outside this range may affect its performance, reliability, and lifespan. Engineers should consider the relay's temperature rating when designing their system, especially in high-temperature or extreme environment applications.
To ensure reliable operation, the relay's contacts should be kept clean and free of contamination. Engineers can use conformal coatings, sealants, or other protection methods to prevent moisture and contaminants from affecting the contacts. Regular cleaning and maintenance may also be necessary in certain applications.
The HE1AN-P-DC9V-Y5 relay has built-in surge and overvoltage protection features, but engineers should still consider adding external protection components, such as TVS diodes or varistors, to ensure the relay and surrounding circuitry are protected from voltage spikes and surges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HE1aN-P-DC9V-Y5 Overview

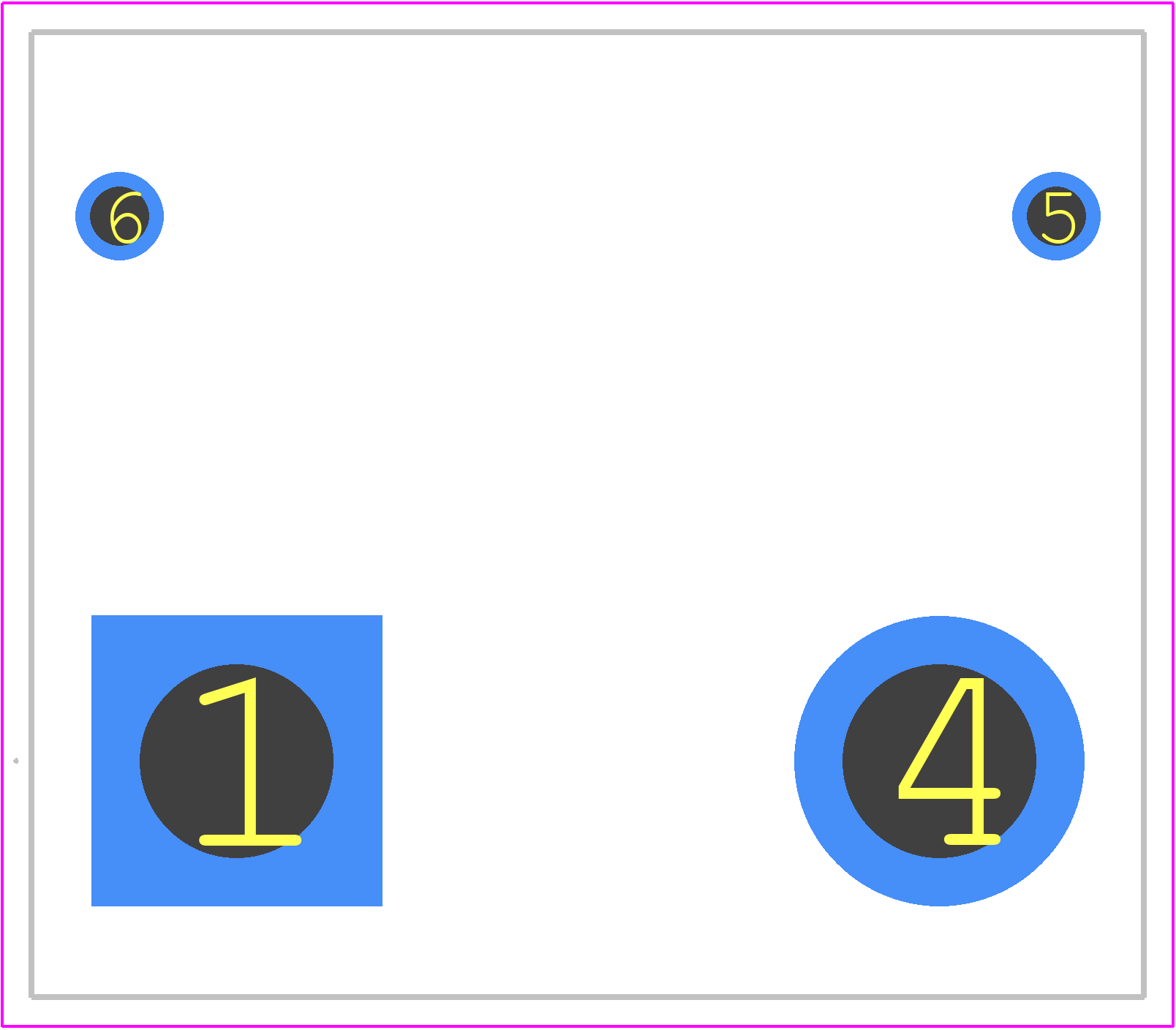

Use the download button to access the HE1aN-P-DC9V-Y5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HE1aN,
or try a keyword search, such as Power/Signal Relays
