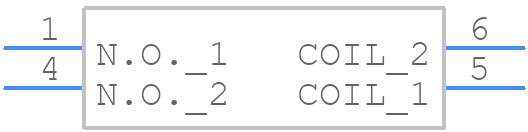

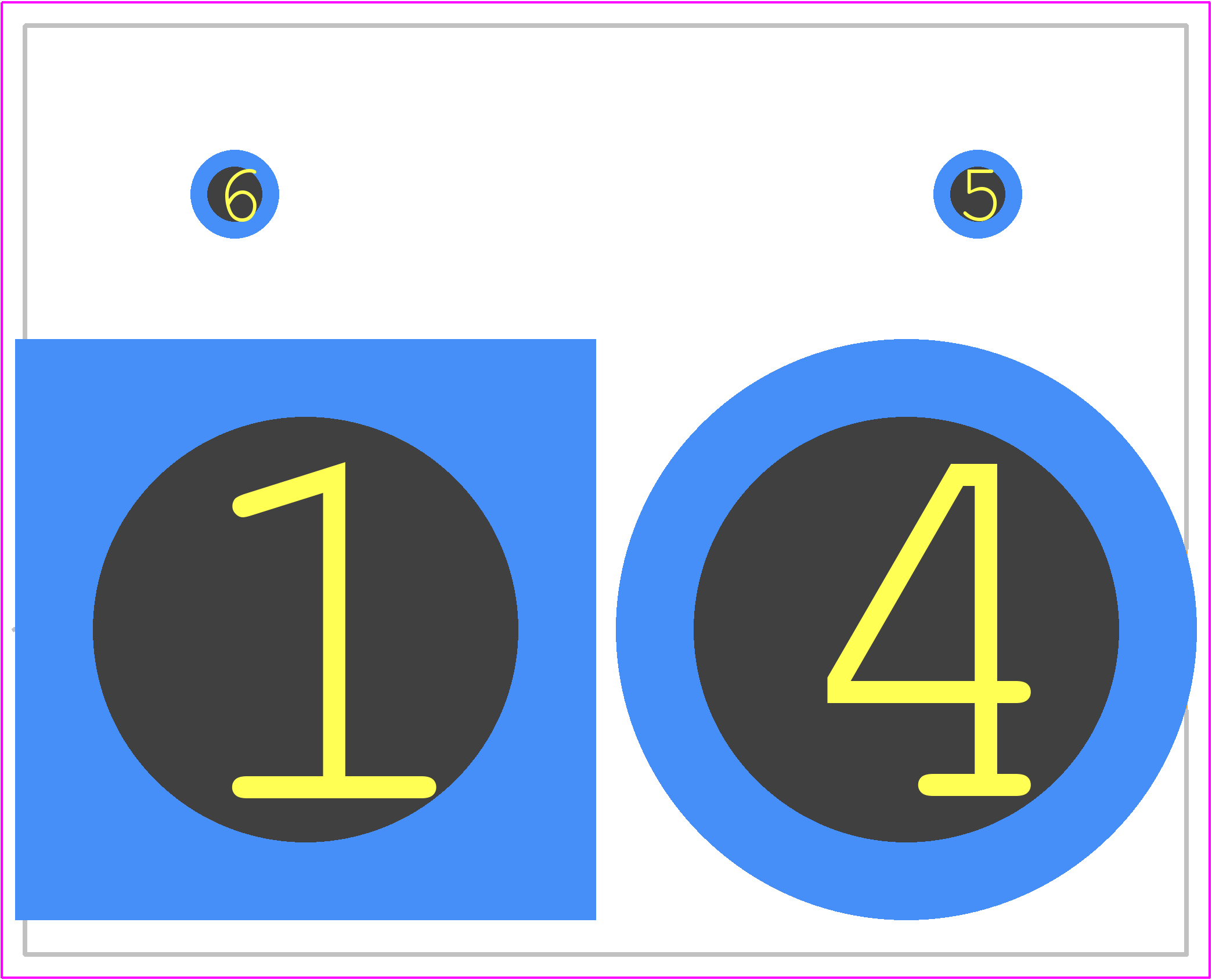

HE1AN-W-DC24V-Y7 - Panasonic

HE1AN-W-DC24V-Y7 Details

• Manufacturer Part Number:

  HE1AN-W-DC24V-Y7

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.97

• Body Breadth:

  40 mm

• Body Height:

  43 mm

• Body Length or Diameter:

  50 mm

• Coil Current(DC)-Max:

  0.104 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  2500 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  230 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  120A@800VAC

• Contact Current(AC)-Max:

  120 A

• Contact Resistance:

  10 mΩ

• Contact Voltage(AC)-Max:

  800 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  1000 Cycle(s)

• End Contact Material:

  SILVER NICKEL

• Insulation Resistance:

  1000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  4

• Operate Time:

  30 ms

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  50mm x 40mm x 43mm

• Reference Standard:

  CSA; CUL; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Sealing:

  FLUX FREE SEALED

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
