A good PCB layout for the HE721A1210 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce electromagnetic interference (EMI).
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
The HE721A1210 has an operating temperature range of -40°C to 125°C, but it's recommended to derate the component's power handling at high temperatures to ensure reliability.
Yes, the HE721A1210 is designed to withstand vibrations up to 10G, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to prevent damage.
To troubleshoot issues with the HE721A1210, check the input and output voltages, ensure proper PCB layout and soldering, and verify that the component is not overheating. Use an oscilloscope to analyze the input and output waveforms.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HE721A1210 Overview

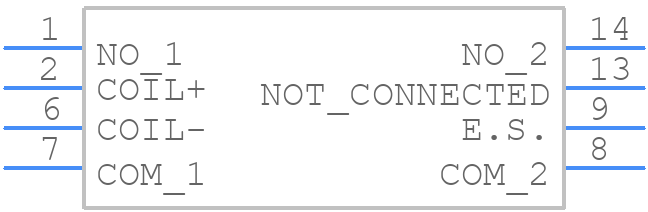

Use the download button to access the HE721A1210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HE721,
or try a keyword search, such as Reed Relays
