HE721C2400 - LITTELFUSE

Description: SPDT Reed Relay, 24V dc

Download HE721C2400 Model

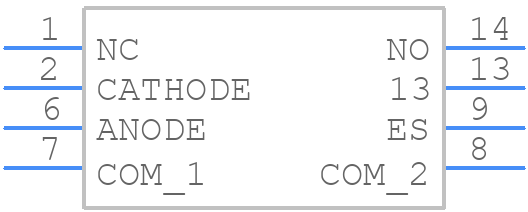

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HE721C2400 - LITTELFUSE PCB footprint - Other - Other - HE721C2400-3
click to zoom
3D Models
HE721C2400 - LITTELFUSE  - 3D model - Other - HE721C2400-3
click to zoom

HE721C2400 Details

  • Manufacturer Part Number:

    HE721C2400

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Body Breadth:

    7.22 mm

  • Body Height:

    5.5 mm

  • Body Length or Diameter:

    19.05 mm

  • Coil Current(DC)-Max:

    0.012 A

  • Coil Operate Voltage(DC):

    16 V

  • Coil Power:

    288 mW

  • Coil Release Voltage(DC):

    2 V

  • Coil Resistance:

    2000 Ω

  • Coil Voltage(DC)-Max:

    44 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    0.18A@120VAC

  • Contact Current(AC)-Max:

    0.18 A

  • Contact Current(DC)-Max:

    0.25 A

  • Contact (DC) Max Power Rating R Load:

    5W@175VDC

  • Contact (DC) Max Rating R Load:

    0.25A@175VDC

  • Contact Resistance:

    200 mΩ

  • Contact Voltage(AC)-Max:

    120 V

  • Contact Voltage(DC)-Max:

    175 V

  • Contact/Output Supply Type:

    AC/DC

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    10000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    8

  • Operate Time:

    3 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BULK

  • Reference Standard:

    CUL; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    DRY REED RELAY

  • Release Time:

    3 ms

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Length:

    0.002999745999491999 inch

  • Termination Type:

    SOLDER
