A good PCB layout for the HE721C2410 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure proper soldering, use a soldering iron with a temperature range of 250-270°C. Apply a small amount of solder paste to the pads, and use a gentle touch to avoid applying excessive pressure. Inspect the joints under a microscope or with a magnifying glass to ensure they are smooth and shiny.
The HE721C2410 is rated for operation from -40°C to 125°C. However, it's recommended to derate the device's performance at temperatures above 85°C to ensure reliable operation.
Yes, the HE721C2410 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
To troubleshoot issues with the HE721C2410, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to inspect the input and output waveforms, and consult the datasheet for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HE721C2410 Overview

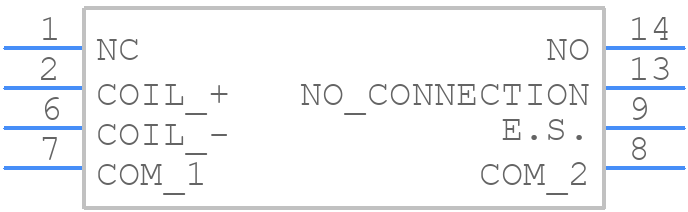

Use the download button to access the HE721C2410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HE721,
or try a keyword search, such as Reed Relays
