HEF4011BT-Q100J - Nexperia

Description: HEF4011B-Q100 - Quad 2-input NAND gate@en-us

Download HEF4011BT-Q100J Model
Schematic
symbols

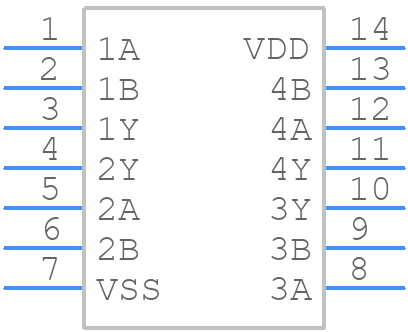

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HEF4011BT-Q100J - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
HEF4011BT-Q100J - Nexperia  - 3D model - Small Outline Packages - SO14
click to zoom

HEF4011BT-Q100J Details

  • Manufacturer Part Number:

    HEF4011BT-Q100J

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Logic IC Type:

    NAND GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    110 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4011BT-Q100J Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HEF4011BT-Q100J is 4.5V to 15V.
  • To ensure proper input signal conditioning, use a pull-up or pull-down resistor to define the input state when the input is not driven, and use a series resistor to limit the input current.
  • The maximum frequency of operation for the HEF4011BT-Q100J is typically around 10 MHz, but this can vary depending on the specific application and operating conditions.
  • To minimize power consumption, use a low-power supply voltage, minimize the number of gates used, and consider using a low-power version of the device if available.
  • The HEF4011BT-Q100J has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as providing adequate heat sinking and airflow, to prevent overheating.
