HEF4027BT - Nexperia

Description: HEF4027BT, Dual J-K Type Flip Flop 3 to 15V 16-Pin SOIC

Download ECAD Model

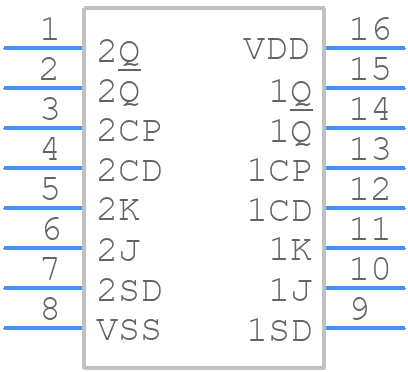

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

HEF4027BT - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO16 (SOT109-1)
click to zoom

3D Models

HEF4027BT - Nexperia  - 3D model - Small Outline Packages - SO16 (SOT109-1)
click to zoom

HEF4027BT Details

  • Manufacturer Part Number:

    HEF4027BT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP,

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1989-06-01

  • Manufacturer:

    Nexperia

  • Risk Rank:

    0.81

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Logic IC Type:

    J-K FLIP-FLOP

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    210 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    4 MHz
