HEF4030BT-Q100J - Nexperia

Description: HEF4030B-Q100 - Quad 2-input EXCLUSIVE-OR gate@en-us

Download HEF4030BT-Q100J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

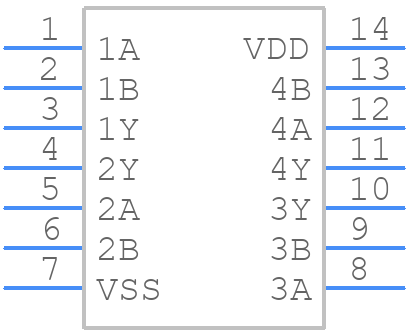

Symbol
HEF4030BT-Q100J - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4030BT-Q100J - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT108-1
click to zoom
3D Models
HEF4030BT-Q100J - Nexperia - 3D model - Small Outline Packages - SOT108-1
click to zoom

HEF4030BT-Q100J Details

  • Manufacturer Part Number:

    HEF4030BT-Q100J

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Logic IC Type:

    XOR GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    175 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4030BT-Q100J Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HEF4030BT-Q100J is 4.5 V to 15.5 V, as specified in the datasheet. However, it's recommended to operate the device within the 5 V to 10 V range for optimal performance and to ensure reliable operation.
  • The input voltage thresholds for the HEF4030BT-Q100J are not explicitly stated in the datasheet. As a general rule, it's recommended to use a voltage threshold of around 2.5 V for a logic high and 0.5 V for a logic low. However, the exact threshold values may vary depending on the specific application and operating conditions.
  • The maximum frequency of operation for the HEF4030BT-Q100J is not explicitly stated in the datasheet. However, based on the device's propagation delay and rise/fall times, it's recommended to operate the device at frequencies up to 10 MHz for optimal performance.
  • To ensure reliable operation of the HEF4030BT-Q100J in high-temperature environments, it's recommended to follow the device's recommended operating conditions and derating guidelines. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the device's junction temperature.
  • The HEF4030BT-Q100J has built-in ESD protection, but it's still recommended to follow proper ESD handling and storage procedures to prevent damage to the device. This includes using ESD-safe materials, handling the device by the body or pins, and storing the device in a protective package.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4030BT-Q100J Overview

Use the download button to access the HEF4030BT-Q100J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Gates
