HEF4051BT - Nexperia

Description: 8-channel analog multiplexer/demultiplexer

Download HEF4051BT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

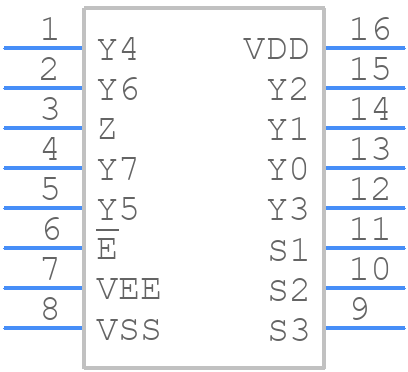

HEF4051BT - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4051BT - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO16
click to zoom
3D Models
HEF4051BT - Nexperia - 3D model - Small Outline Packages - SO16
click to zoom

HEF4051BT Details

  • Manufacturer Part Number:

    HEF4051BT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1989-05-30

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.15

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    25 Ω

  • On-state Resistance-Max (Ron):

    2500 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    240 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4051BT Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the HEF4051BT is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To ensure proper ESD protection, it's recommended to handle the HEF4051BT in an ESD-protected environment, use ESD-protected tools and equipment, and follow proper handling and storage procedures. Additionally, consider using ESD protection devices such as diodes or resistors in the circuit design.
  • The recommended operating voltage range for the HEF4051BT is 3 V to 15 V, with a typical operating voltage of 5 V. However, it's recommended to consult the datasheet for specific voltage ratings and operating conditions.
  • To minimize power consumption, consider using a low-power mode or shutdown feature if available, reducing the clock frequency, and optimizing the circuit design to minimize current consumption. Additionally, consider using a low-dropout regulator or other power-saving techniques.
  • The HEF4051BT has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device within the recommended operating temperature range, use proper thermal management techniques such as heat sinks or thermal interfaces, and avoid overheating the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4051BT Overview

Use the download button to access the HEF4051BT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Multiplexers or Switches

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
