HEF4066BT - Nexperia

Description: Quad single-pole single-throw analog switch

Download HEF4066BT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

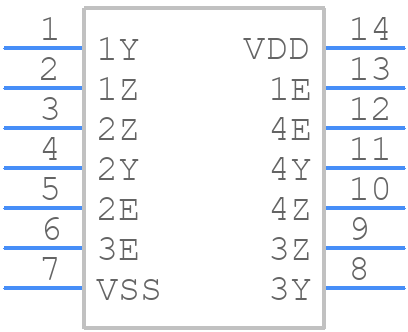

Symbol
HEF4066BT - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4066BT - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO-14
click to zoom
3D Models
HEF4066BT - Nexperia - 3D model - Small Outline Packages - SO-14
click to zoom

HEF4066BT Details

  • Manufacturer Part Number:

    HEF4066BT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SO-14

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1989-06-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.75

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    25 Ω

  • On-state Resistance-Max (Ron):

    365 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    160 ns

  • Switch-on Time-Max:

    80 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4066BT Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the HEF4066BT is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To ensure proper switching, make sure to provide a clean and stable clock signal, and use a suitable pull-up or pull-down resistor on the control input (E) to prevent floating states. Additionally, ensure that the supply voltage (VDD) is within the recommended range and that the device is properly decoupled.
  • The maximum current that the HEF4066BT can handle is typically around 10 mA per switch, but it's recommended to consult the datasheet for specific current ratings and to ensure that the device is operated within its recommended operating conditions.
  • Yes, the HEF4066BT can be used as a level shifter, but it's not recommended as it's not designed for that purpose. The device is intended for analog switching applications, and using it as a level shifter may not provide the desired performance and reliability.
  • To reduce power consumption, consider using a lower supply voltage (VDD), reducing the clock frequency, and minimizing the number of switches used. Additionally, consider using a low-power mode or shutdown feature if available in your design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4066BT Overview

Use the download button to access the HEF4066BT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Multiplexers or Switches

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
