HEF4093BT - Nexperia

Description: Quad 2-input NAND Schmitt trigger

Download HEF4093BT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

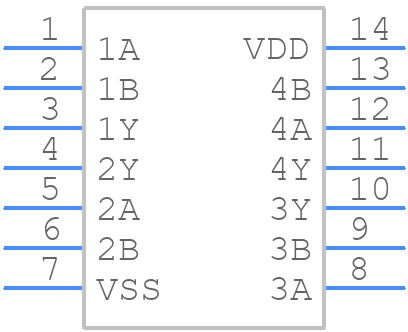

HEF4093BT - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4093BT - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO-14
click to zoom
3D Models
HEF4093BT - Nexperia - 3D model - Small Outline Packages - SO-14
click to zoom

HEF4093BT Details

  • Manufacturer Part Number:

    HEF4093BT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1989-06-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Logic IC Type:

    NAND GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    185 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

HEF4093BT Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the HEF4093BT is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper operation, the HEF4093BT should be powered with a stable voltage supply, and decoupling capacitors (e.g. 100nF) should be placed close to the device to filter out noise and reduce electromagnetic interference (EMI).
  • The HEF4093BT can sink or source up to 20mA of current per output, but it's recommended to limit the current to 10mA or less to ensure reliable operation and prevent overheating.
  • To prevent oscillation, it's recommended to use a pull-up or pull-down resistor on the Schmitt trigger inputs, and to ensure that the input signals are clean and free of noise.
  • The HEF4093BT is rated for operation up to 125°C, but it's recommended to derate the device's performance and consider thermal management strategies when operating in high-temperature environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4093BT Overview

Use the download button to access the HEF4093BT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
