The recommended operating voltage range for HEF4520BT is 4.5 V to 15.5 V, although it can operate down to 3 V with reduced performance.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is VCC first, then VEE, and finally the input signals. Also, ensure that the power supply is stable and within the recommended operating range.
The maximum frequency of operation for HEF4520BT is typically around 10 MHz, although this can vary depending on the specific application and operating conditions.
To handle thermal management, ensure good heat dissipation by providing a heat sink or a thermal pad on the PCB, and avoid operating the device at high temperatures (above 85°C) for extended periods.
The HEF4520BT has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions when handling the device, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag or container.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HEF4520BT,652 Overview

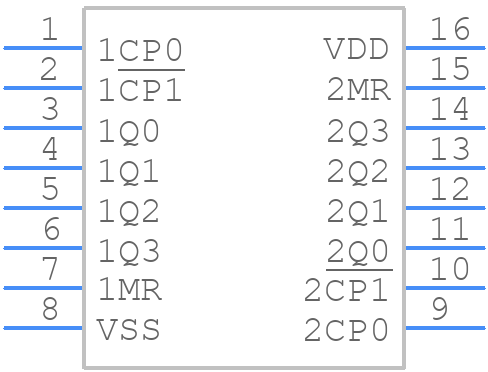

Use the download button to access the HEF4520BT,652 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF45,
or try a keyword search, such as Counters
