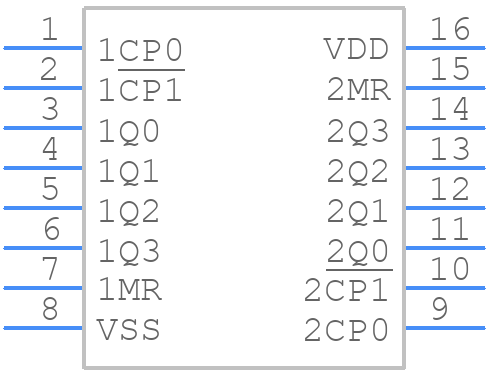

HEF4520BT - Nexperia

HEF4520BT Details

• Manufacturer Part Number:

  HEF4520BT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-16

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1985-01-15

• Manufacturer:

  Nexperia

• YTEOL:

  5

• Additional Feature:

  GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUT

• Count Direction:

  UP

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  9.9 mm

• Load Capacitance (CL):

  50 pF

• Load/Preset Input:

  NO

• Logic IC Type:

  BINARY COUNTER

• Max Frequency@Nom-Sup:

  8000000 Hz

• Max I(ol):

  0.0036 A

• Mode of Operation:

  SYNCHRONOUS

• Moisture Sensitivity Level:

  1

• Number of Bits:

  4

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  220 ns

• Propagation Delay (tpd):

  220 ns

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  3.9 mm

• fmax-Min:

  20 MHz
