- Part Number HEF4528BT
- Manufacturer Nexperia
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO16
- Released Date Jan 12, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HEF4528BT Details
-
Manufacturer Part Number:
HEF4528BT
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOP-14
-
Country Of Origin:
Thailand
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1989-06-01
-
Manufacturer:
Nexperia
-
YTEOL:
5
-
Additional Feature:
RETRIGGERABLE
-
Family:
4000/14000/40000
HEF4528BT Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the HEF4528BT is 4.5V to 15V, although it can operate down to 3V with reduced performance.
-
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC supply is stable and within the recommended range before applying any inputs.
-
The maximum frequency of operation for the HEF4528BT is typically around 10MHz, although this can vary depending on the specific application and operating conditions.
-
The output enable (OE) pin is active-low, meaning that when it is low, the outputs are enabled. When OE is high, the outputs are in a high-impedance state. Make sure to connect OE to a valid logic level or use a pull-up/pull-down resistor to ensure proper operation.
-
To minimize noise and ensure proper operation, follow good layout and routing practices, such as keeping signal traces short and away from power traces, using decoupling capacitors, and avoiding sharp corners and vias.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
HEF4528BT Overview

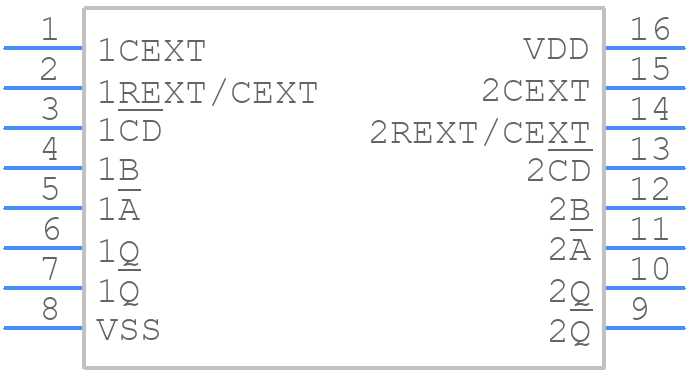

Use the download button to access the HEF4528BT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF45,
or try a keyword search, such as Prescaler/Multivibrators
