A good PCB layout for the HF500GS-15 should prioritize thermal management, minimize parasitic inductance, and ensure good power and ground plane connections. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, place the input and output capacitors close to the IC, and use short, wide traces for the power paths.
Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and an ESR (Equivalent Series Resistance) of less than 1 ohm. For output capacitors, select ones with a voltage rating of at least 1.5 times the maximum output voltage, and an ESR of less than 0.1 ohm. X5R or X7R ceramic capacitors are good options. The recommended capacitance values are 10uF for the input and 22uF for the output.
The HF500GS-15 can operate reliably up to an ambient temperature of 85°C, but the junction temperature should not exceed 125°C. Ensure good airflow and thermal management to prevent overheating.
The HF500GS-15 has a built-in overcurrent protection feature that limits the output current to 1.5 times the rated current. To implement additional overcurrent protection, use an external current sense resistor and a comparator to monitor the output current. When the current exceeds the desired limit, use the comparator output to shut down the converter.
The HF500GS-15 can operate with an input voltage range of 4.5V to 15V, but the recommended range is 5V to 12V for optimal performance and efficiency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HF500GS-15 Overview

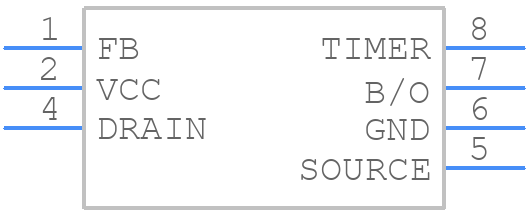

Use the download button to access the HF500GS-15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HF500,
or try a keyword search, such as Switching Regulator or Controllers
