A good PCB layout for the HFC0310GS should prioritize thermal management, with a solid ground plane and thermal vias to dissipate heat. The input and output capacitors should be placed close to the IC, and the feedback network should be routed away from noisy signals.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. You can also add a small capacitor (e.g., 10nF) in parallel with the feedback resistor to improve stability.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at high temperatures. For reliable operation, it's best to keep the ambient temperature below 85°C, especially in high-power applications.
While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the device's performance, efficiency, and reliability.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and thermal management. Use an oscilloscope to inspect the output voltage ripple, switching frequency, and feedback signal. Consult the datasheet and application notes for guidance on specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFC0310GS Overview

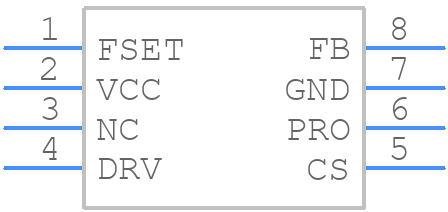

Use the download button to access the HFC0310GS schematic symbol, PCB footprint, and 3D model.
