The recommended PCB layout for the HFC0400GS-Z includes a solid ground plane, short and wide traces for the input and output, and a decoupling capacitor close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure the device operates within the SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage does not exceed 40V, the output current does not exceed 4A, and the junction temperature does not exceed 150°C.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, with a voltage rating of at least 50V.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
The thermal resistance of the HFC0400GS-Z package is 25°C/W (junction-to-ambient) and 10°C/W (junction-to-case).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFC0400GS-Z Overview

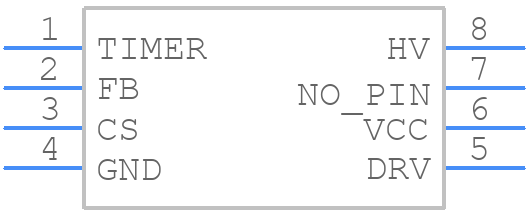

Use the download button to access the HFC0400GS-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFC04,
or try a keyword search, such as Switching Regulator or Controllers
