HFCN-2700A+ - Mini-Circuits

Description: 5.8GHz Center High Pass Ceramic Filter 5.8 GHz 50Ohm 6-SMD, No Lead LTCC HIGH PASS FILTER, 2900 - 87

Download HFCN-2700A+ Model

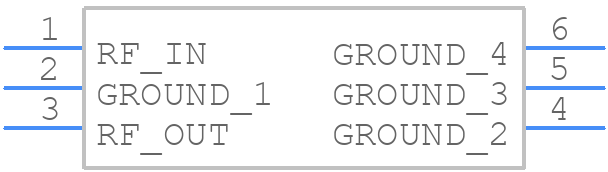

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HFCN-2700A+ - Mini-Circuits PCB footprint - Other - Other - HFCN-2700A+
click to zoom
3D Models
HFCN-2700A+ - Mini-Circuits  - 3D model - Other - HFCN-2700A+
click to zoom

HFCN-2700A+ Details

  • Manufacturer Part Number:

    HFCN-2700A+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, CASE FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.17

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency (+/- delta f)-Max:

    550000 kHz

  • Attenuation@Freq-Max:

    20 dB

  • Average Input Power:

    7 W

  • Center or Cutoff Frequency (fo/fc):

    2700 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.89 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    5

  • Number of Sections-Min:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Screening Level:

    MIL-STD-202

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.5

  • Width:

    1.6 mm

HFCN-2700A+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is essential for optimal performance. It is recommended to use a solid ground plane on the PCB and to connect the device's ground pins to it. Additionally, keep the signal traces as short as possible and use a 50-ohm microstrip line to match the device's impedance.
  • The HFCN-2700A+ requires a bias voltage of +12V to +15V and a bias current of 100mA to 150mA. Ensure that the bias voltage is well-regulated and filtered to prevent noise and ripple from affecting the device's performance.
  • The HFCN-2700A+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Common issues such as oscillations or instability can be caused by improper biasing, poor PCB layout, or inadequate decoupling. Check the bias voltage and current, ensure proper grounding, and add decoupling capacitors as needed to stabilize the device.
  • The HFCN-2700A+ is designed to operate over a temperature range of -40°C to +85°C. Operating the device outside this range may affect its performance or reduce its lifespan.
