Part Image

HFCN-4400+ - Mini-Circuits

Description: Signal Conditioning HI PASS FLTR / SURF MT / RoHS

Download HFCN-4400+ Model

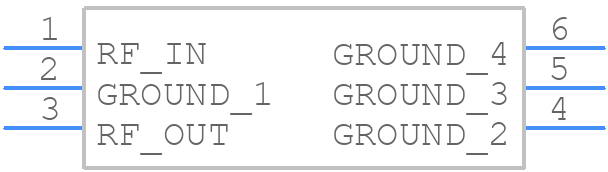

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HFCN-4400+ - Mini-Circuits PCB footprint - Other - Other - HFCN-4400+-1
click to zoom
3D Models
HFCN-4400+ - Mini-Circuits  - 3D model - Other - HFCN-4400+-1
click to zoom

HFCN-4400+ Details

  • Manufacturer Part Number:

    HFCN-4400+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.24

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency (+/- delta f)-Max:

    900000 kHz

  • Attenuation@Freq-Max:

    20 dB

  • Average Input Power:

    7 W

  • Center or Cutoff Frequency (fo/fc):

    4400 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.89 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    5

  • Number of Sections-Min:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Screening Level:

    MIL-STD-202

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.5

  • Width:

    1.6 mm

HFCN-4400+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the HFCN-4400+. A solid ground plane and short, direct connections to the device's ground pins are recommended. A 4-layer PCB with a dedicated ground plane is ideal. Avoid using vias under the device, and keep the signal traces short and away from the device's pins.
  • The HFCN-4400+ requires a bias voltage of 5V ± 0.5V and a bias current of 100mA ± 10mA. Ensure the power supply is stable and noise-free. Use a low-dropout regulator (LDO) or a switching regulator with a low noise output to minimize noise coupling into the device.
  • The HFCN-4400+ can handle input powers up to +15 dBm (31.6 mW) without damage. However, it's recommended to operate the device at input powers below +10 dBm (10 mW) for optimal performance and to prevent overheating.
  • Common issues like oscillations or instability can be caused by improper biasing, poor PCB layout, or inadequate decoupling. Check the bias voltage and current, ensure proper grounding, and add decoupling capacitors (e.g., 100nF and 10uF) close to the device's power pins. Also, verify that the input and output impedances are matched to 50 ohms.
  • The HFCN-4400+ is specified to operate from -40°C to +85°C. However, optimal performance is achieved between 0°C and +60°C. Operating the device outside the recommended temperature range may affect its performance, reliability, and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HFCN-4400+ Overview

Use the download button to access the HFCN-4400+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFCN-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
