HFCW-1132+ - Mini-Circuits

Description: Signal Conditioning LTCC High Pass Filter, 13000 - 20000 MHz

Download HFCW-1132+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

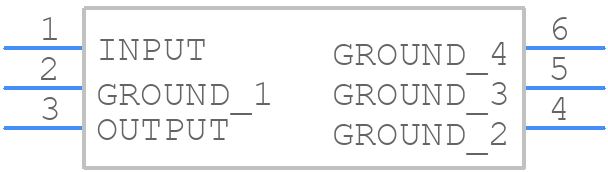

HFCW-1132+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
HFCW-1132+ - Mini-Circuits PCB footprint - Other - Other - HFCW-1132+-3
click to zoom
3D Models
HFCW-1132+ - Mini-Circuits - 3D model - Other - HFCW-1132+-3
click to zoom

HFCW-1132+ Details

  • Manufacturer Part Number:

    HFCW-1132+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.48

  • Average Input Power:

    2.5 W

  • Center or Cutoff Frequency (fo/fc):

    11300 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.6 mm

  • Input/Output Impedance:

    50 OHM

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    0.8 mm

HFCW-1132+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The HFCW-1132+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device within the recommended operating temperature range.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to keep the input power below 1 dBm to avoid compression and ensure linear operation. Higher input powers may cause the device to saturate or even damage it.
  • While the HFCW-1132+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some caution. However, the device's performance may be affected, and impedance matching networks may be required to ensure optimal performance.
  • When overdriven, the HFCW-1132+ may exhibit compression, distortion, or even oscillation. It's essential to ensure that the input signal is within the recommended range to maintain linear operation and prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HFCW-1132+ Overview

Use the download button to access the HFCW-1132+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFCW-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
