HFCW-7000+ - Mini-Circuits

Description: Signal Conditioning LTCC High Pass Filter, 7600 - 20000 MHz

Download HFCW-7000+ Model

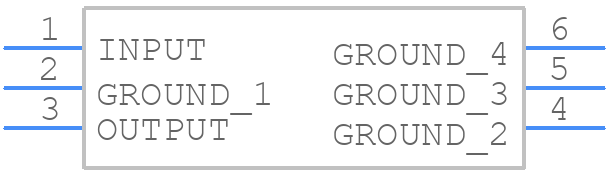

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HFCW-7000+ - Mini-Circuits PCB footprint - Other - Other - JC0603C_2022_1
click to zoom
3D Models
HFCW-7000+ - Mini-Circuits  - 3D model - Other - JC0603C_2022_1
click to zoom

HFCW-7000+ Details

  • Manufacturer Part Number:

    HFCW-7000+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.74

  • Average Input Power:

    2.5 W

  • Center or Cutoff Frequency (fo/fc):

    4500 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.6 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    0.8 mm
