The recommended PCB layout and spacing for the HFD3/24 relay can be found in the relay's application notes or by contacting the manufacturer directly. A general rule of thumb is to maintain a minimum of 2mm spacing between the relay and other components to ensure proper heat dissipation and to prevent electrical noise interference.
The HFD3/24 relay is designed to operate in environments with moderate vibration. However, it's recommended to consult the manufacturer's specifications and perform thorough testing to ensure the relay's performance and reliability in extreme environments.
The maximum surge current the HFD3/24 relay can handle is typically specified in the datasheet. However, if it's not explicitly stated, it's recommended to contact the manufacturer directly for this information. As a general guideline, most relays can handle surge currents 2-5 times the nominal current rating for a short duration (typically <10ms).
The HFD3/24 relay is designed to operate within a specific temperature range (typically -40°C to 85°C). Exceeding this range may affect the relay's performance, reliability, and lifespan. Consult the manufacturer's specifications and perform thorough testing to ensure the relay's performance in high-temperature environments.
The recommended derating curve for the HFD3/24 relay can be found in the relay's datasheet or by contacting the manufacturer directly. A derating curve provides guidance on reducing the relay's rating as the operating temperature increases to ensure reliable operation and prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFD3/24 Overview

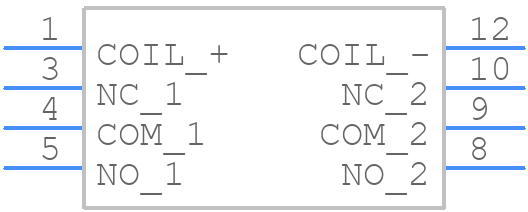

Use the download button to access the HFD3/24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFD3/,
or try a keyword search, such as Power/Signal Relays
