Halo Electronics provides a recommended PCB layout and land pattern in their application note AN-001, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
The HFJV1-1G41RL has a maximum junction temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component. The thermal resistance of the component is 25°C/W, which can help with thermal design calculations.
Halo Electronics recommends a soldering profile with a peak temperature of 260°C for a maximum of 10 seconds. The component is RoHS compliant and can be soldered using a standard Pb-free soldering process. It's essential to follow the recommended soldering profile to prevent damage to the component.
Common issues with the HFJV1-1G41RL can be troubleshooted by checking the PCB layout, ensuring proper soldering, and verifying the component's orientation. Additionally, checking the input and output impedance matching, as well as the signal integrity, can help identify and resolve issues. Halo Electronics also provides application support and can be contacted for further assistance.
Yes, the HFJV1-1G41RL is RoHS compliant and can be soldered using lead-free soldering processes. The component's termination finish is Ni/Au, which is compatible with lead-free soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFJV1-1G41RL Overview

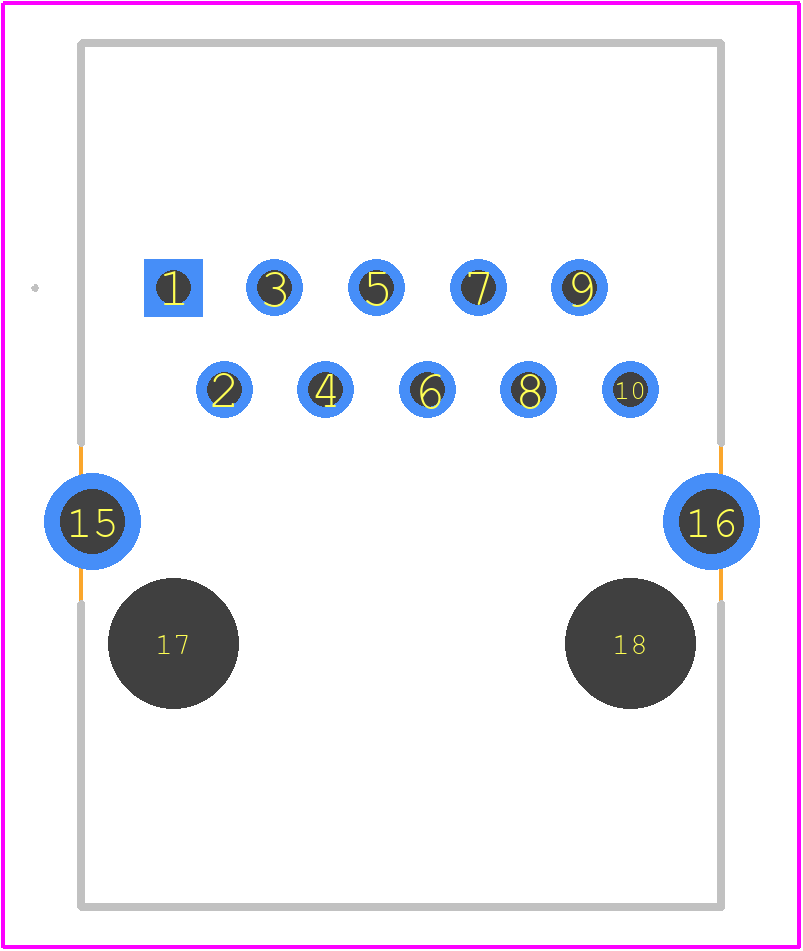

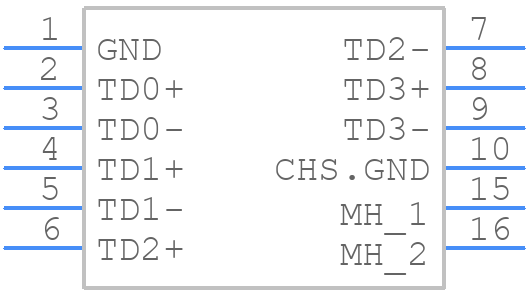

Use the download button to access the HFJV1-1G41RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFJV1,
or try a keyword search, such as Telecom and Datacom Connectors
