HFW1201K45M - TE Connectivity

Description: Contact Features: Contact Arrangement 2 Form C, DPDT, 2 C/O | Contact Current Rating (Max) 2 AMP | Electrical Characteristics: Coil Magnetic System Non-Polarized, Monostable | Coil Resistance 700 OHM | Coil Voltage Rating 26.5 VDC | Input Voltage 26.5 VDC | Shock Resistance 100G's, 6ms | Vibration Resistance 30G's, 10 – 3000Hz | Coil Power Measurement Milliwatts | Coil Power Rating DC 1003 MILW | Actuating System DC | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features:

Download HFW1201K45M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HFW1201K45M - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

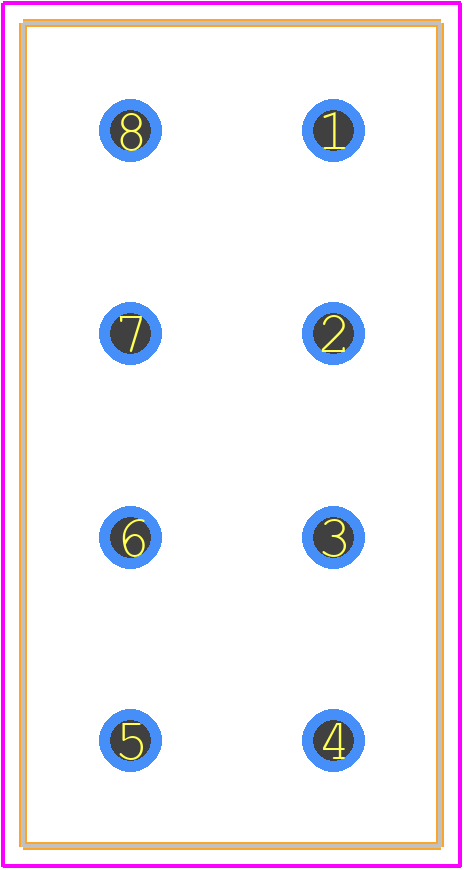

HFW1201K45M - TE Connectivity PCB footprint - Other - Other - HFW1201K45M-2
click to zoom
3D Models
HFW1201K45M - TE Connectivity - 3D model - Other - HFW1201K45M-2
click to zoom

HFW1201K45M Details

  • Manufacturer Part Number:

    HFW1201K45M

  • Brand Name:

    CII

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.85

  • Body Breadth:

    10.41 mm

  • Body Height:

    10.41 mm

  • Body Length or Diameter:

    20.57 mm

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Operate Voltage(DC):

    13.5 V

  • Coil Power:

    1003 mW

  • Coil Release Voltage(DC):

    1.5 V

  • Coil Resistance:

    700 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil Voltage-Nom:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@28VDC

  • Contact Voltage(DC)-Max:

    28 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    8

  • Operate Time:

    6.5 ms

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Physical Dimension:

    20.57mm x 10.41mm x 10.41mm

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    6.5 ms

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Length:

    0.004699009398018796 inch

  • Termination Type:

    SOLDER

HFW1201K45M Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal performance and to prevent thermal runaway.
  • TE Connectivity recommends using a soldering profile with a peak temperature of 245°C for 1-2 seconds. It's also essential to use a solder with a melting point above 217°C to prevent thermal damage to the component.
  • The maximum operating temperature range for the HFW1201K45M is -40°C to 150°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
  • Yes, the HFW1201K45M is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly secured to the PCB and that the PCB is designed to withstand the vibration levels expected in the application.
  • TE Connectivity recommends storing the HFW1201K45M in a dry, cool place, away from direct sunlight and moisture. During shipping, the component should be protected from mechanical stress, moisture, and extreme temperatures.
