HFW1201K45P footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

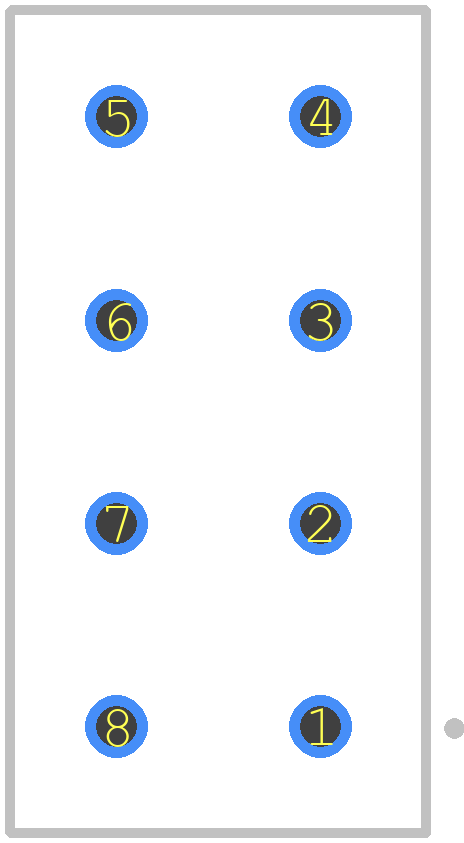

PCB Footprints

HFW1201K45P - TE Connectivity PCB footprint - Other - Other - HFW1201K45P

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HFW1201K45P
Part Number HFW1201K45P
Manufacturer TE Connectivity
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HFW1201K45P
Released Date Jul 14, 2017
Last Modified Date Apr 2, 2024 12:57 PM UTC
Pinout / Pin List Click Here (Member Only)

HFW1201K45P Details

Manufacturer Part Number:
HFW1201K45P
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.41.00.50
Factory Lead Time:
15 Weeks
Manufacturer:
TE Connectivity
YTEOL:
6.85
Body Breadth:
10.41 mm
Body Height:
10.41 mm
Body Length or Diameter:
20.57 mm
Coil Current(DC)-Max:
0.038 A
Coil Operate Voltage(DC):
13.5 V
Coil Power:
1003 mW
Coil Release Voltage(DC):
8 V
Coil Resistance:
700 Ω
Coil Voltage(DC)-Max:
26.5 V
Coil Voltage-Nom:
26.5 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
2 A
Contact Current(DC)-Max:
2 A
Contact (DC) Max Rating R Load:
2A@28VDC
Contact Voltage(DC)-Max:
28 V
Contact/Output Supply Type:
AC/DC
Input Switching Control Type:
Random
Insulation Resistance:
1000000000 Ω
Mounting Feature:
PANEL MOUNT
Number of Terminals:
8
Operate Time:
4 ms
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Physical Dimension:
20.57mm x 10.41mm x 10.41mm
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT-CO
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4 ms
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Terminal Length:
0.004000508001016002 inch
Termination Type:
SOLDER

HFW1201K45P Frequently Asked Questions (FAQs)

TE Connectivity provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and electrical performance.
Follow the recommended soldering profile and guidelines provided by TE Connectivity. Ensure the PCB is clean and free of contaminants, and use a soldering iron with a temperature range of 250°C to 260°C. Avoid overheating, which can cause damage to the component.
The HFW1201K45P has a high power dissipation capability, but it still requires proper thermal management. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce thermal resistance.
While the HFW1201K45P is a robust component, it's essential to ensure proper mounting and mechanical support to withstand high-vibration or high-shock environments. Consult with TE Connectivity or a qualified mechanical engineer to ensure the component is properly secured and supported.
The HFW1201K45P is a sensitive component and requires proper ESD protection during handling and assembly. Ensure that all personnel handling the component are grounded, and use ESD-safe materials and equipment to prevent damage.
