HFW1201K46M - TE Connectivity

Description: Contact Features: Contact Current Rating (Max) 2 AMP | Contact Arrangement 2 Form C, DPDT, 2 C/O | Electrical Characteristics: Coil Resistance 700 OHM | Input Voltage 26.5 VDC | Coil Power Rating DC 1003 MILW | Coil Power Measurement Milliwatts | Actuating System DC | Shock Resistance 100G's, 6ms | Vibration Resistance 30G's, 10 – 3000Hz | Coil Magnetic System Non-Polarized, Monostable | Coil Voltage Rating 26.5 VDC | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features:

Download HFW1201K46M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

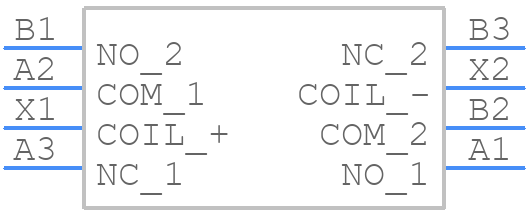

HFW1201K46M - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
HFW1201K46M - TE Connectivity PCB footprint - Other - Other - HFW1201K46M-3
click to zoom
3D Models
HFW1201K46M - TE Connectivity - 3D model - Other - HFW1201K46M-3
click to zoom

HFW1201K46M Details

  • Manufacturer Part Number:

    HFW1201K46M

  • Brand Name:

    CII

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.85

  • Body Height:

    10.41 mm

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Power:

    1003 mW

  • Coil Resistance:

    700 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
