HFW1201L01P - TE Connectivity

Description: Contact Features: Contact Current Rating (Max) 2 AMP | Contact Arrangement 2 Form C, DPDT, 2 C/O | Electrical Characteristics: Actuating System DC | Coil Resistance 27 OHM | Coil Magnetic System Non-Polarized, Monostable | Coil Power Measurement Milliwatts | Shock Resistance 100G's, 6ms | Coil Power Rating DC 926 MILW | Vibration Resistance 30G's, 10 – 3000Hz | Coil Voltage Rating 5 VDC | Input Voltage 5 VDC | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features: Enclosu

Download HFW1201L01P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

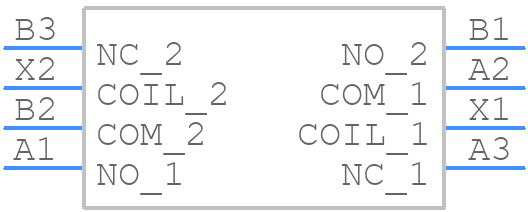

HFW1201L01P - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
HFW1201L01P - TE Connectivity PCB footprint - Other - Other - HFW1201L01P-1
click to zoom
3D Models
HFW1201L01P - TE Connectivity - 3D model - Other - HFW1201L01P-1
click to zoom

HFW1201L01P Details

  • Manufacturer Part Number:

    HFW1201L01P

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    10.41 mm

  • Body Height:

    10.41 mm

  • Body Length or Diameter:

    20.57 mm

  • Coil Operate Voltage(DC):

    2.7 V

  • Coil Power:

    926 mW

  • Coil Release Voltage(DC):

    1.65 V

  • Coil Resistance:

    27 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil Voltage-Nom:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@28VDC

  • Contact Voltage(DC)-Max:

    28 V

  • Electrical Life:

    100000 Cycle(s)

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    8

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Physical Dimension:

    20.57mm x 10.41mm x 10.41mm

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Release Time:

    4 ms

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Terminal Length:

    0.004699009398018796 inch

  • Termination Type:

    SOLDER

HFW1201L01P Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and signal integrity.
  • TE Connectivity provides a soldering guide in their application note AN-1037, which outlines the recommended soldering profile and techniques. Additionally, it's essential to follow the IPC-A-610 standard for electronic assemblies.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance.
  • It's essential to follow proper ESD handling procedures when handling the HFW1201L01P, as it is a sensitive electronic component. This includes using ESD-safe workstations, wrist straps, and packaging materials.
  • TE Connectivity provides reliability and MTBF ratings for the HFW1201L01P in their reliability report, which can be found on their website. The report outlines the device's reliability performance under various operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HFW1201L01P Overview

Use the download button to access the HFW1201L01P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFW12, or try a keyword search, such as Other Relays
