HFW4A1201S01 - TE Connectivity

Description: Low Signal Relays - PCB HFW4A1201S01 = 2100 HFW 4A REL 2 Form C (DPDT-NO, NC), 26.5 VDC , 46.7 mA , 1.4 W , -65C ~ +125C

Download HFW4A1201S01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

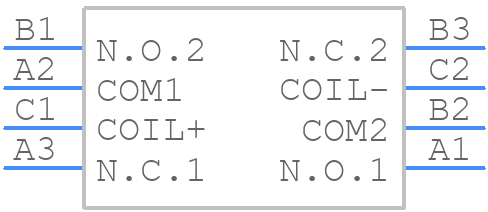

HFW4A1201S01 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

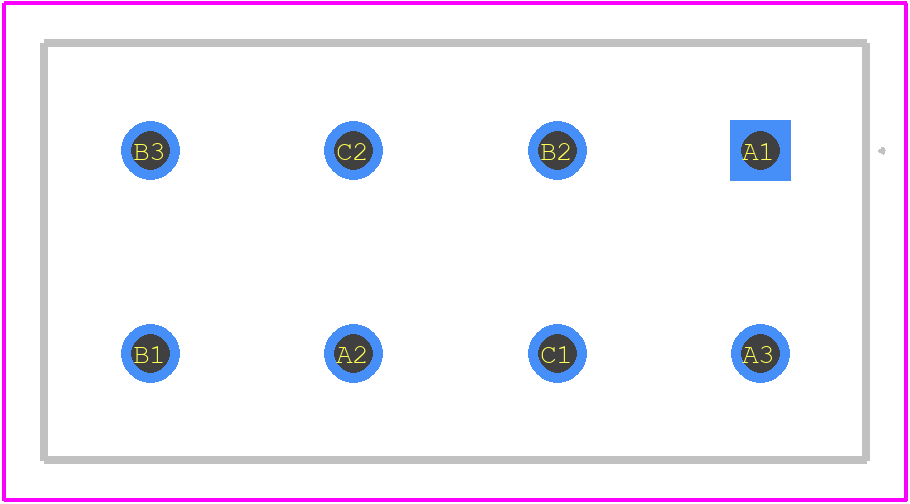

HFW4A1201S01 - TE Connectivity PCB footprint - Other - Other - HFW4A1201S01-3
click to zoom
3D Models
HFW4A1201S01 - TE Connectivity - 3D model - Other - HFW4A1201S01-3
click to zoom

HFW4A1201S01 Details

  • Manufacturer Part Number:

    HFW4A1201S01

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    33 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.57

  • Body Breadth:

    10.41 mm

  • Body Height:

    11.43 mm

  • Body Length or Diameter:

    20.57 mm

  • Coil Current(DC)-Max:

    0.044 A

  • Coil Operate Voltage(DC):

    13.4 V

  • Coil Power:

    1166 mW

  • Coil Release Voltage(DC):

    1.5 V

  • Coil Resistance:

    600 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@115VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    4 A

  • Contact (DC) Max Rating R Load:

    4A@30VDC

  • Contact Voltage(AC)-Max:

    115 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    7 ms

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Physical Dimension:

    20.57mm x 10.41mm x 11.43mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    6 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
