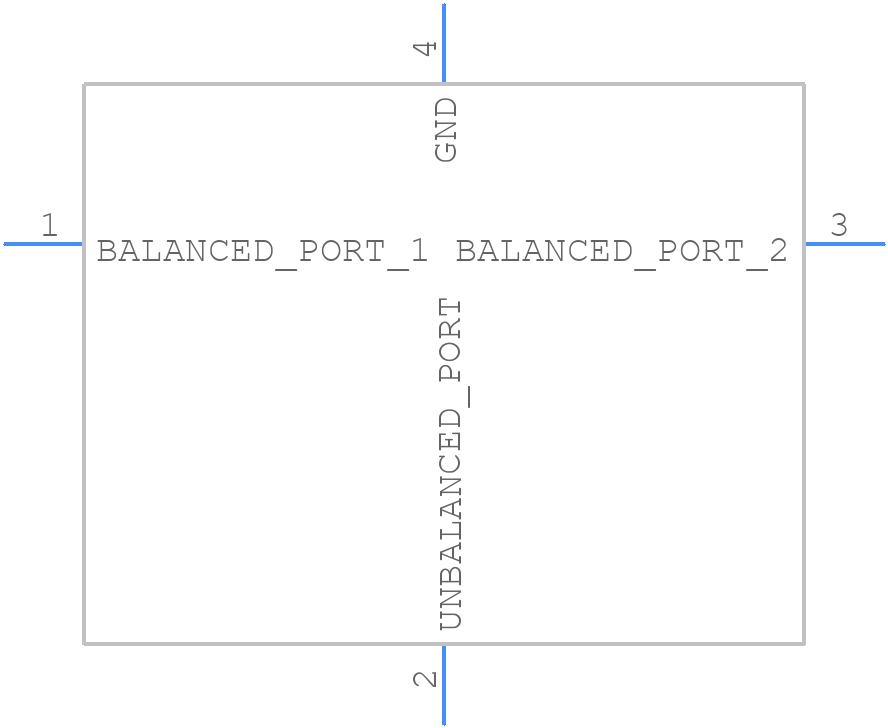

HHM1903A4 - TDK

HHM1903A4 Frequently Asked Questions (FAQs)

• What is the recommended land pattern for HHM1903A4?
  The recommended land pattern for HHM1903A4 is a rectangular pad with a size of 1.9mm x 1.3mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
• How do I handle the thermal considerations for HHM1903A4?
  To handle thermal considerations, ensure good thermal conduction by using a thermal via or a thermal pad under the component. The thermal resistance of the PCB should be minimized, and the component should be placed on a solid copper plane to dissipate heat efficiently.
• What is the maximum operating temperature range for HHM1903A4?
  The maximum operating temperature range for HHM1903A4 is -40°C to +125°C. However, the component's performance may degrade at extreme temperatures, and it's recommended to operate within the specified temperature range for optimal performance.
• How do I ensure the reliability of HHM1903A4 in high-vibration environments?
  To ensure reliability in high-vibration environments, use a robust PCB design with a secure component mounting method, such as using a screw or a clip to hold the component in place. Additionally, apply a conformal coating to protect the component from moisture and mechanical stress.
• What is the recommended storage condition for HHM1903A4?
  The recommended storage condition for HHM1903A4 is in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. Avoid storing the component in direct sunlight or near heat sources.
