TDK recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output lines as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is also recommended.
Ensure good thermal conductivity by using a heat sink or a thermal pad, and provide adequate airflow around the device. Avoid exposing the device to extreme temperatures during storage or operation, and follow the recommended derating guidelines for temperature and power dissipation.
The maximum allowable voltage for the HHM1918A2 is 1.5 times the rated voltage (Vin) for a maximum of 100ms. Exceeding this voltage may cause damage to the device. It's essential to follow the recommended voltage derating guidelines to ensure safe operation.
Yes, the HHM1918A2 is suitable for high-frequency applications up to 100MHz. However, it's essential to consider the device's parasitic inductance and capacitance, and to follow the recommended PCB layout and component selection guidelines to minimize signal degradation and ensure optimal performance.
Start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure the device is properly soldered and mounted. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM1918A2 Overview

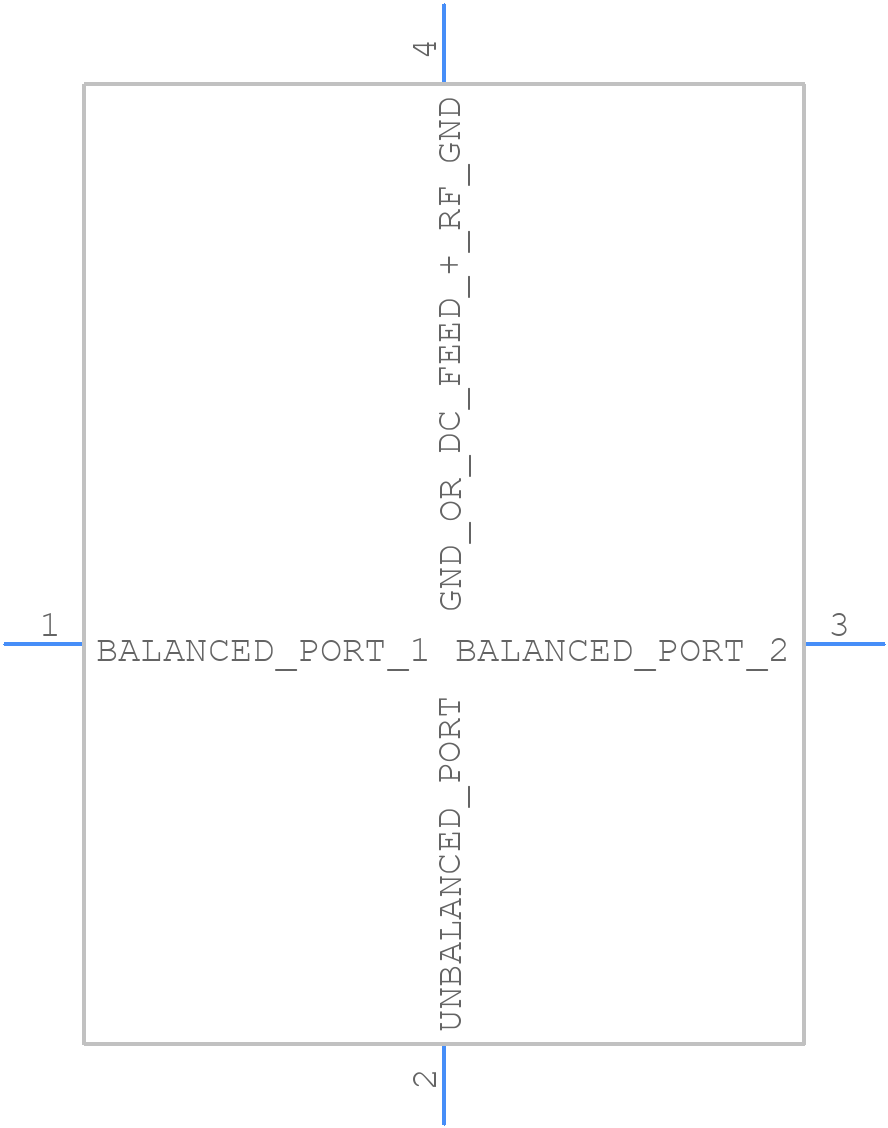

Use the download button to access the HHM1918A2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM19,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
