The recommended land pattern for the HHM1927A4 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the HHM1927A4 by the edges, avoid touching the pins or the component body, and use an anti-static wrist strap or mat. It's also recommended to use a vacuum pick-up tool or tweezers to handle the component.
The maximum allowable voltage derating for the HHM1927A4 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines for your application.
The HHM1927A4 is rated for operation up to 125°C. However, it's essential to consider the temperature derating curve and the maximum operating temperature specified in the datasheet. If your application exceeds these limits, consider using a different component or consulting with TDK Corporation for guidance.
To ensure proper soldering, follow the recommended soldering profile, use a solder with a melting point below 260°C, and avoid applying excessive heat or force during the soldering process. It's also recommended to inspect the solder joints for defects or cold solder joints.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM1927A4 Overview

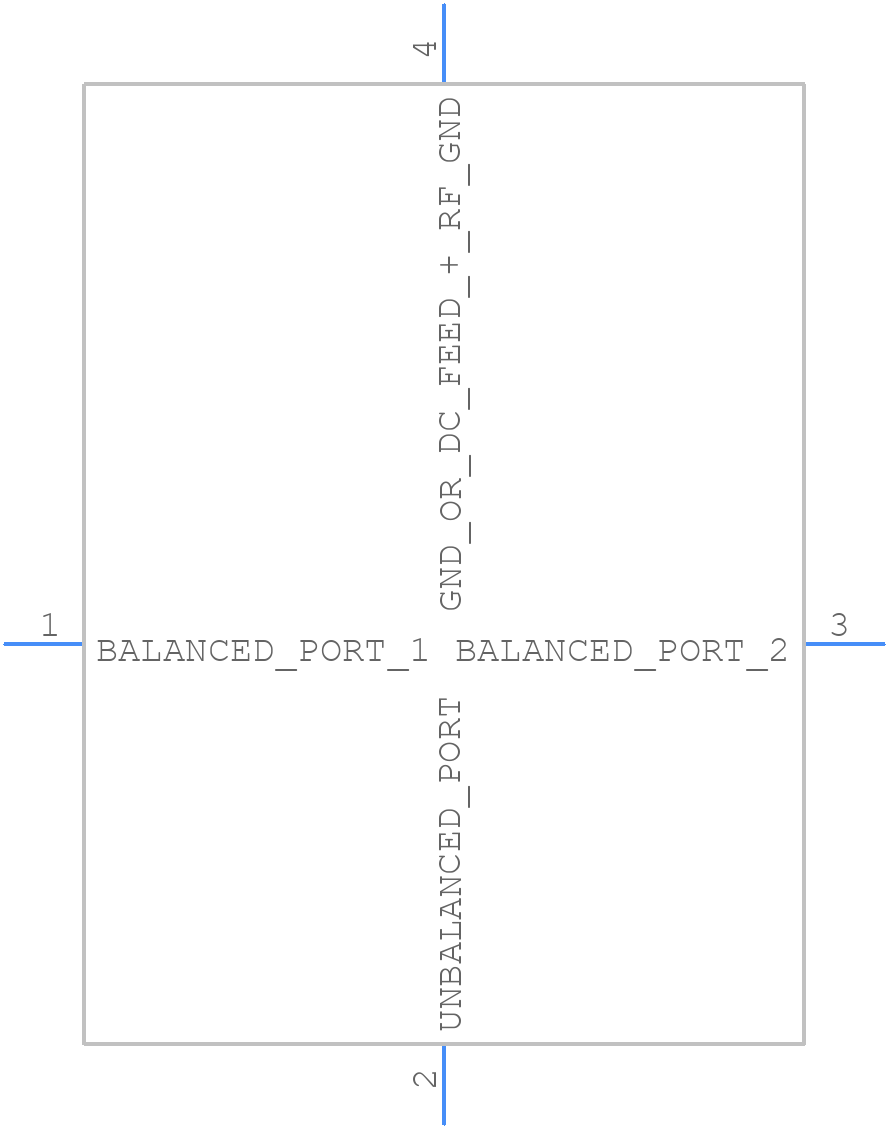

Use the download button to access the HHM1927A4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM19,
or try a keyword search, such as RF Transformers
