TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The HHM2955A1 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow TDK's thermal design guidelines. The device's thermal resistance (Rth) is specified in the datasheet, and it's essential to keep the operating temperature within the recommended range.
TDK recommends following the JEDEC J-STD-020D.1 standard for soldering conditions. The recommended temperature profile is 260°C (peak temperature) with a dwell time of 10-30 seconds. It's essential to follow these guidelines to prevent damage to the device.
The HHM2955A1 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you should consult with TDK's technical support team to discuss the specific requirements and potential customization options.
Follow TDK's recommended operating conditions, storage guidelines, and handling procedures. Ensure proper PCB design, assembly, and testing. Implement adequate protection circuits, such as overvoltage protection and ESD protection, to prevent damage from external factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM2955A1 Overview

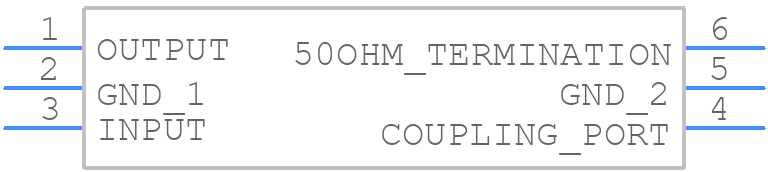

Use the download button to access the HHM2955A1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM29,
or try a keyword search, such as RF/Microwave Couplers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
