The recommended land pattern for HHV1WSJT-52-1M is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
While HHV1WSJT-52-1M is rated for operation up to 150°C, it's not recommended to use it in high-temperature environments above 125°C for extended periods. This is because the component's reliability and lifespan may be affected. If high-temperature operation is required, consider using a different component or consulting with YAGEO Corporation for guidance.
To prevent damage, handle HHV1WSJT-52-1M by the edges or the body, avoiding touching the termination pads. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the component during assembly.
The recommended soldering profile for HHV1WSJT-52-1M is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. This profile ensures proper soldering and minimizes the risk of component damage.
While HHV1WSJT-52-1M is designed to operate in a variety of environments, it's not recommended to use it in humid or moist environments without proper protection. Moisture can affect the component's reliability and lifespan. Consider using a conformal coating or potting compound to protect the component in humid environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHV1WSJT-52-1M Overview

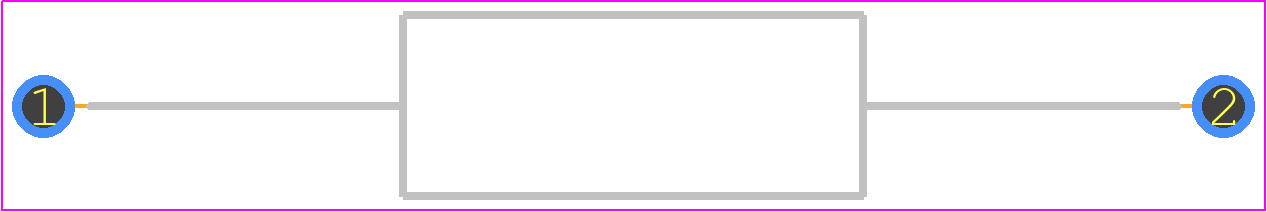

Use the download button to access the HHV1WSJT-52-1M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHV1W,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
