Description:The HI-506/HI-507 and HI-508/HI-509 monolithic CMOS multiplexers each include an array of sixteen and eight analog switches respectively, a digital decoder circuit for channel selection, voltage reference for logic thresholds, and an enable input for device selection when several multiplexers are present. The Dielectric Isolation (DI) process used in fabrication of these devices eliminates the problem of latchup. DI also offers much lower substrate leakage and parasitic capacitance than conventional junctio
Renesas recommends a thermal pad on the bottom of the package, connected to a copper plane on the PCB to dissipate heat efficiently. A minimum of 4 layers (top, ground, power, and bottom) is recommended, with a solid ground plane and power plane to reduce noise and improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Additionally, ensure that the device is operated within the specified temperature range and that the junction temperature does not exceed 150°C.
Renesas recommends a power-up sequence of VCC, then VDD, and finally EN (enable) signal. This sequence ensures that the internal voltage regulators are properly powered up and the device is enabled correctly.
To troubleshoot issues with the HI1-0509-2, start by checking the power supply voltage, ensuring it's within the specified range. Verify that the device is properly powered up and that the enable signal is correctly configured. Check for any signs of overheating, and ensure that the thermal design is adequate. If issues persist, consult the datasheet and application notes, or contact Renesas support for further assistance.
Yes, the HI1-0509-2 can be used in a design with multiple power domains. However, it's essential to ensure that each power domain is properly isolated and that the device is powered up and enabled correctly. Consult the datasheet and application notes for guidance on power domain management and isolation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HI1-0509-2 Overview

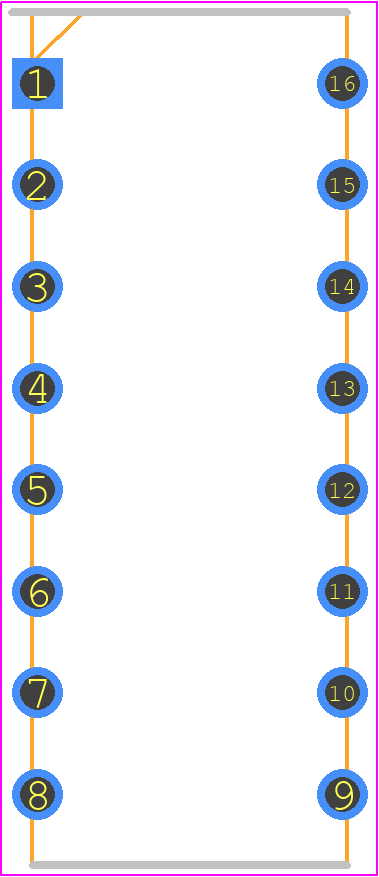

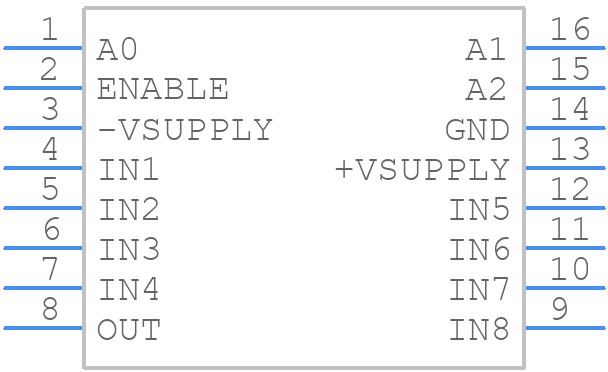

Use the download button to access the HI1-0509-2 schematic symbol, PCB footprint, and 3D model.
