HI9P0508-9Z - Renesas Electronics

Description: The HI-506/HI-507 and HI-508/HI-509 monolithic CMOS multiplexers each include an array of sixteen and eight analog switches respectively, a digital decoder circuit for channel selection, voltage reference for logic thresholds, and an enable input for device selection when several multiplexers are present. The Dielectric Isolation (DI) process used in fabrication of these devices eliminates the problem of latchup. DI also offers much lower substrate leakage and parasitic capacitance than conventional junctio

Download HI9P0508-9Z Model

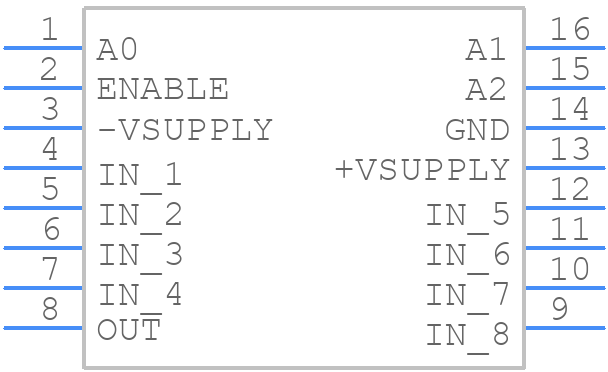

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HI9P0508-9Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.15-5
click to zoom
3D Models
HI9P0508-9Z - Renesas Electronics  - 3D model - Small Outline Packages - M16.15-5
click to zoom

HI9P0508-9Z Details

  • Manufacturer Part Number:

    HI9P0508-9Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.15

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Min (Vsup):

    -10 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    9 Ω

  • On-state Resistance-Max (Ron):

    400 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    1000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
