HIF3F-16PA-2.54DS(71) - Hirose

Description: Hirose HIF3F Series, 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A

Download HIF3F-16PA-2.54DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3F-16PA-2.54DS(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

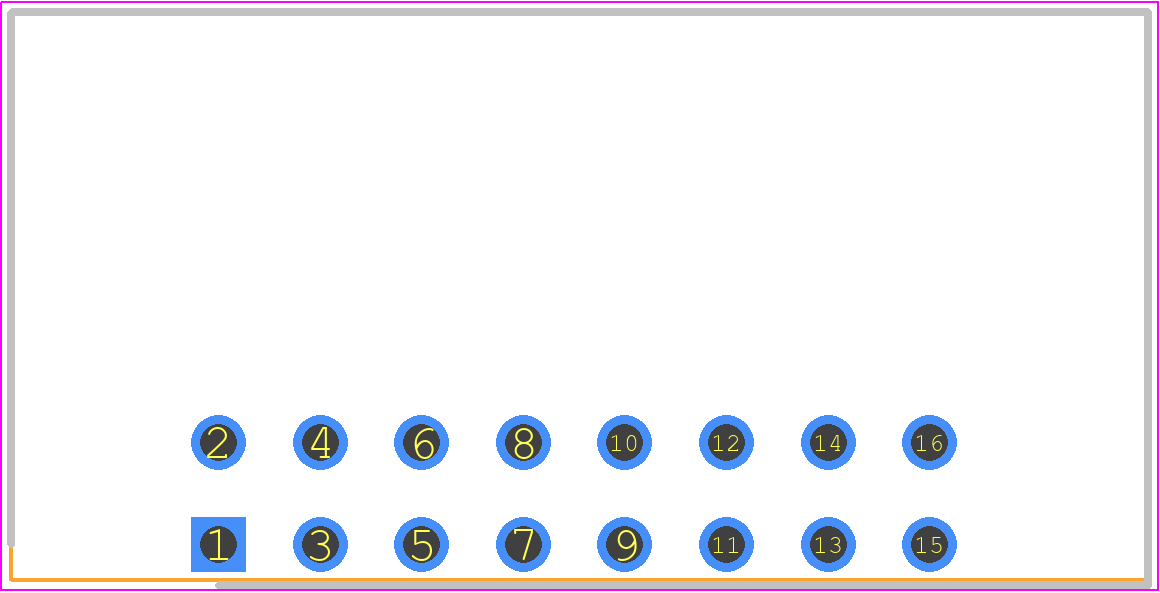

HIF3F-16PA-2.54DS(71) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HIF3F-16PA-2.54DS(71)
click to zoom
3D Models
HIF3F-16PA-2.54DS(71) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - HIF3F-16PA-2.54DS(71)
click to zoom

HIF3F-16PA-2.54DS(71) Details

  • Manufacturer Part Number:

    HIF3F-16PA-2.54DS(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

HIF3F-16PA-2.54DS(71) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the screws on the HIF3F-16PA-2.54DS(71) connector.
  • Yes, the HIF3F-16PA-2.54DS(71) connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2,000 Hz, making it suitable for high-vibration applications.
  • The HIF3F-16PA-2.54DS(71) connector is designed to operate in temperatures ranging from -40°C to 105°C (-40°F to 221°F) and humidity up to 90% RH. However, it's recommended to consult the datasheet and Hirose's application notes for specific guidance on using the connector in harsh environments.
  • The HIF3F-16PA-2.54DS(71) connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the HIF3F-16PA-2.54DS(71) connector is designed to be compatible with automated assembly and inspection processes, featuring a compact design and clear markings for easy identification and handling.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3F-16PA-2.54DS(71) Overview

Use the download button to access the HIF3F-16PA-2.54DS(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3F, or try a keyword search, such as Headers and Edge Type Connectors
