HIF3FC-20PA-2.54DS(91) - Hirose

Description: Headers & Wire Housings 20P R/A PIN HEADER LOW PROF CON GLD PLT

Download HIF3FC-20PA-2.54DS(91) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3FC-20PA-2.54DS(91) - Hirose - PCB symbol
click to zoom
PCB Footprints

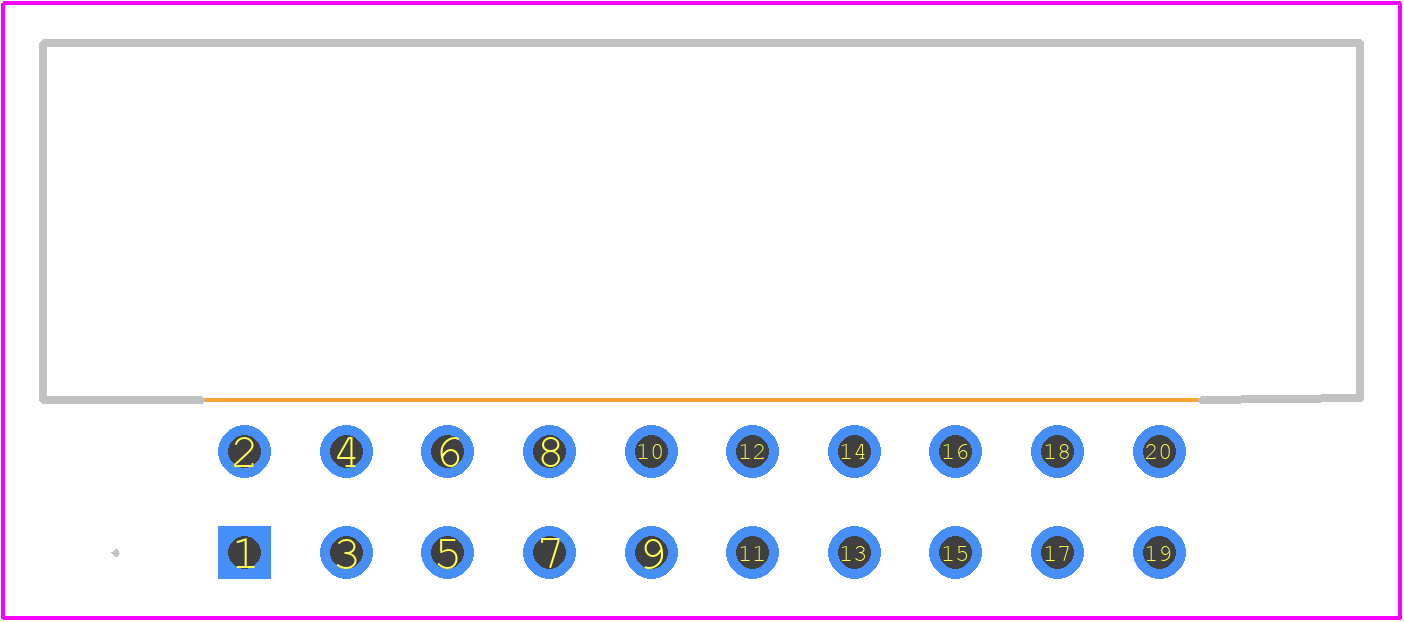

HIF3FC-20PA-2.54DS(91) - Hirose PCB footprint - Other - Other - HIF3FC-20PA-2.54DS(91)-2
click to zoom
3D Models
HIF3FC-20PA-2.54DS(91) - Hirose - 3D model - Other - HIF3FC-20PA-2.54DS(91)-2
click to zoom

HIF3FC-20PA-2.54DS(91) Details

  • Manufacturer Part Number:

    HIF3FC-20PA-2.54DS(91)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD CONNECTOR

HIF3FC-20PA-2.54DS(91) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the HIF3FC-20PA-2.54DS(91) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
  • Yes, the HIF3FC-20PA-2.54DS(91) has a operating temperature range of -40°C to 105°C and is resistant to moisture, making it suitable for use in harsh environments.
  • The mating cycle life of the HIF3FC-20PA-2.54DS(91) is 500 cycles, as specified in the Hirose Electric Co Ltd's datasheet.
  • No, the HIF3FC-20PA-2.54DS(91) is designed for use with a 2.54mm pitch and spacing, and using it with a different pitch or spacing may affect its performance and reliability.
